Wuzhi ZK-1001U Audio Bluetooth Amplifier Board Mono 100W TPA3116D2 with Treble Bass Control BT 5.3 Versatile Audio Input

Wuzhi ZK-1001U Audio Bluetooth Amplifier Board Mono 100W TPA3116D2 with Treble Bass Control BT 5.3 Versatile Audio Input

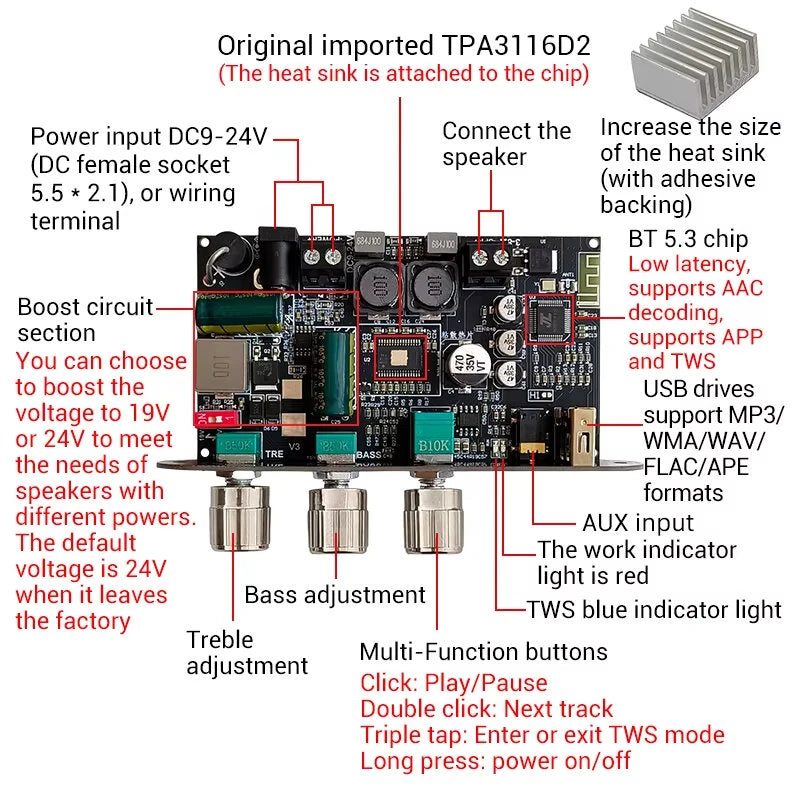

Specifications:

- Brand: Wuzhi Audio

- Model: ZK-1001U

- Name: Mono 100W BT Amplifier Module with Bass and Treble

- Amplifier Chip: TPA3116D2

- BT Version: 5.3

- BT Transmission Distance: 15m

- Audio Input: BT + AUX + USB Disk + USB Sound Card

- Audio Output: Mono 100W

- Adaptive Power Supply: DC9-24V, ≥4A (cannot be connected to AC power), suitable for batteries such as 7.4V, 12V, 21V, not suitable for 24V batteries, fully charged will cause overvoltage.

- Adaptive Speaker: 20-100W, 3-8Ω

- Volume Control (with button):

  - Click: Play/Pause

  - Double Click: Next

  - Triple Click: Enter/Exit TWS Mode

  - Long Press: Turn Off/On

- Protection Mechanism: Input anti-reverse connection, over temperature, over current, short circuit

- Characteristic Function: Support Wuzhi Audio App, modify BT name, password setting, volume adjustment of prompt tone, on/off prompt tone, sleep music, firmware upgrade, Box matching function for true wireless connection with left and right channel speakers, providing a stronger sense of spatial positioning.

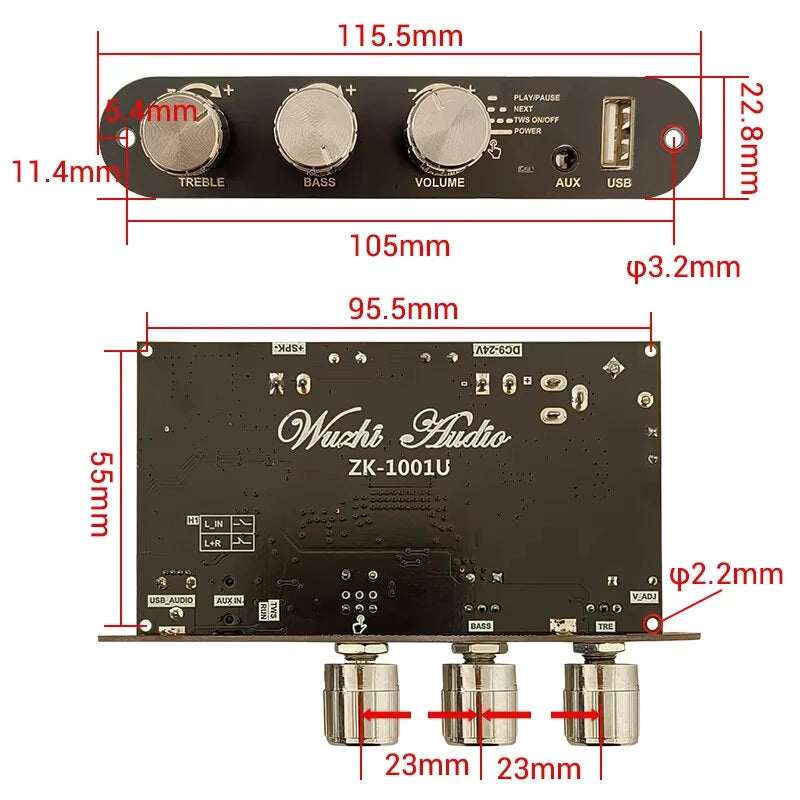

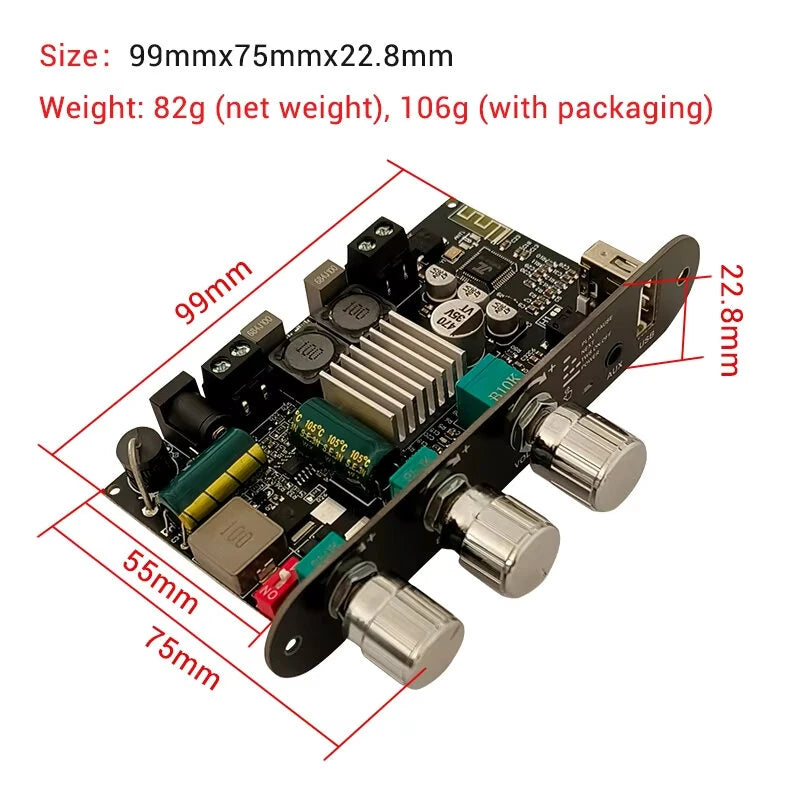

- Product Size: 99x75x22.8mm

- Product Weight: Net Weight 82g



Features:

1. Advanced Bluetooth 5.3: Enjoy seamless audio streaming with the latest Bluetooth technology, ensuring a reliable and high-quality connection up to 15 meters.

2. Multiple Audio Input Options: Supporting BT, AUX, USB Disk, and USB Sound Card, this amplifier offers versatile connectivity for a wide range of audio sources.

3. Powerful Mono Output: Delivering a robust 100W mono output, this amplifier is designed to provide clear and powerful sound for any audio setup.

4. Comprehensive Protection: Equipped with mechanisms for input anti-reverse connection, over temperature, over current, and short circuit protection, ensuring long-term reliability and safety.

5. User-Friendly App Support: Customize your audio experience with the Wuzhi Audio app, which allows you to modify settings such as volume, sleep music, firmware upgrades, and more for a tailored audio experience.



Package Included:

1 x ZK-1001U TPA3116D2 AMP Tone Board Mono 100W BT Bluetooth Amplifier
