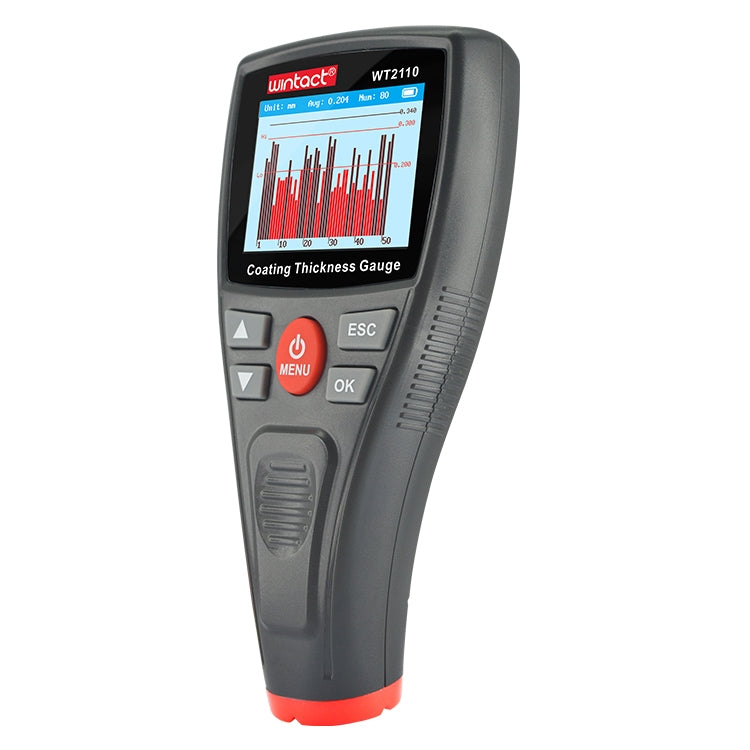

Wintact WT2110 Coating Thickness Gauge Color Screen Display

1. Menu operation and color screen high-definition display.
2. It can quickly, non-destructively and accurately measure the thickness of the non-magnetic coating on the magnetic metal substrate and the thickness of the non-metal coating on the non-magnetic metal substrate. At the same time, it can automatically identify the magnetic metal substrate and the non-magnetic metal substrate.
3. Two measurement methods: single measurement and continuous measurement.
4. Three calibration modes: basic calibration, offset calibration, and zero calibration. Metric/English units and storage function.
5. Screen rotation, charging protection, multi-interface display, screen brightness selection.
6. Widely used in manufacturing, metal processing, chemical, commodity inspection and other testing fields.
7. Support USB and battery power supply.
8. Measuring range: 0-1500um/0-1.5mm/0-59mil
9. Lower limit diameter of magnetic metal substrate: 12mm
10. Lower limit thickness of magnetic metal substrate: 0.5mm
11. The lower limit radius of curvature of the magnetic convex substrate: 2mm
12. The lower limit radius of curvature of the magnetic concave substrate: 11mm
13. Lower limit diameter of non-magnetic metal substrate: 50mm
14. Lower limit thickness of non-magnetic metal substrate: 0.5mm
15. Battery: 3 x 1.2V Ni-MH battery or 5V 1A power adapter
16. Weight: 132g
17. Dimensions: 150 x 65 x 30mm
