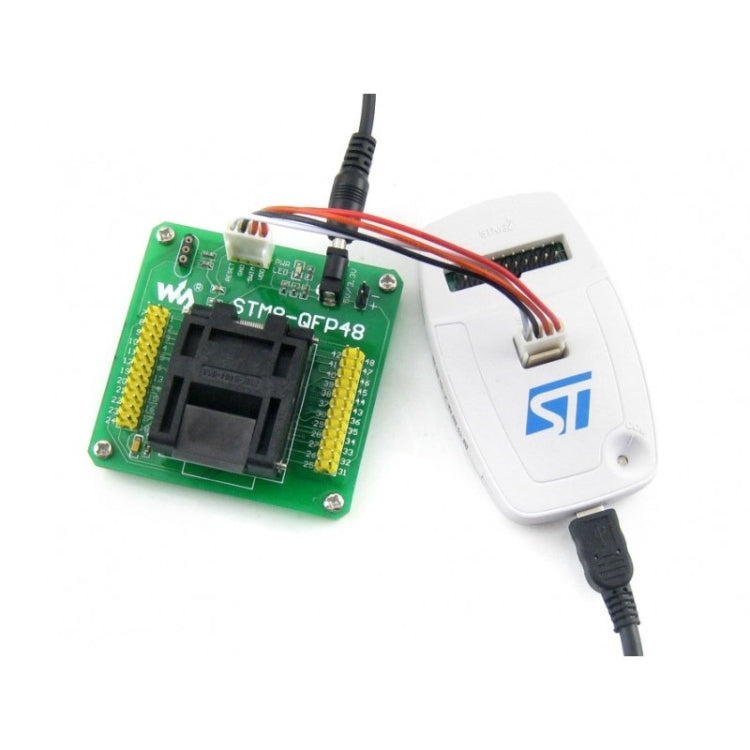

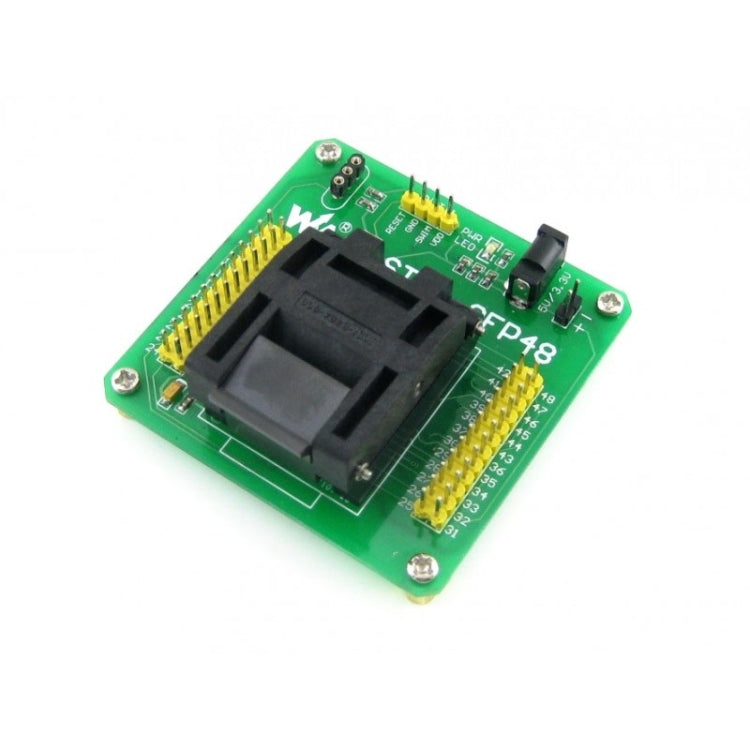

Waveshare STM8-QFP48, Programmer Adapter

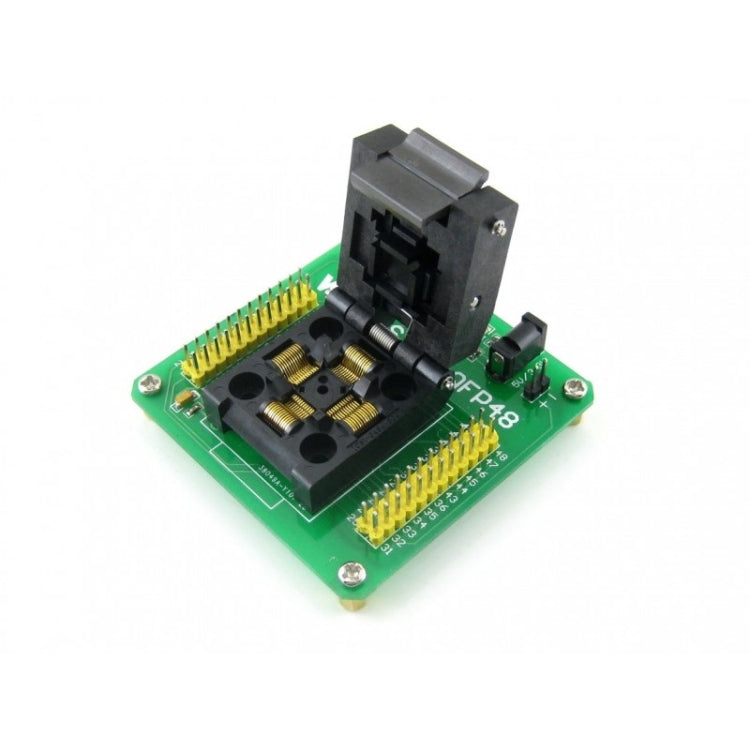

Yamaichi IC Test & Burn-in Socket with a simple board, especially for STM8 microcontroller in QFP48(0.5mm pitch) package

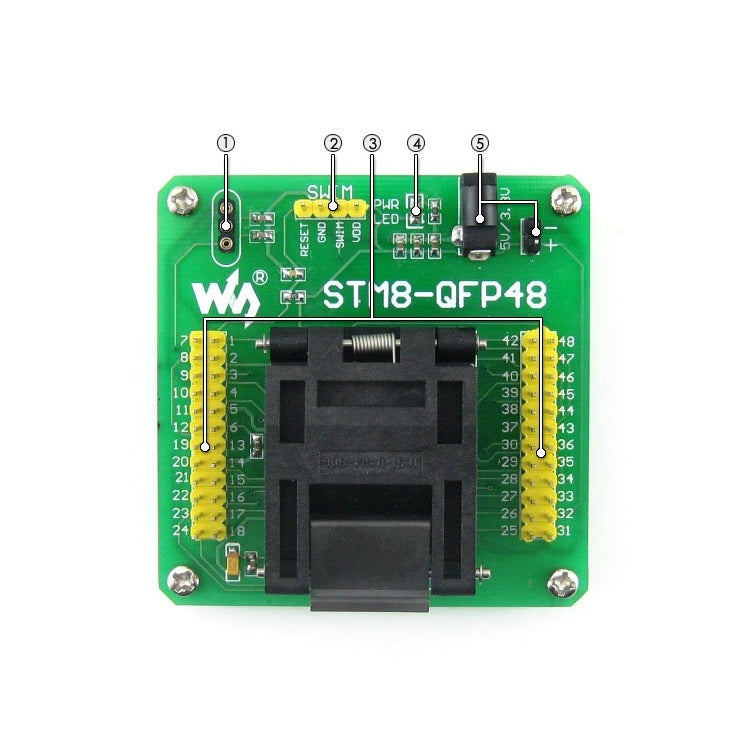

Features
1. 4-pin SWIM Port for programming or testing
2. External crystal can be connected via on board socket
3. All the MCU pins are accessible on expansion connectors

Supported Devices
STM8 microcontroller in QFP48(0.5mm pitch) package with compatible pinouts
- STM8S105CxTx / STM8S207CxTx / STM8S208CxTx
- STM8AF51x8T / STM8AF52x8T / STM8AF61x8T / STM8AF62x8T

Package Contents
1. STM8-QFP48 × 1
2. USB power cable × 1
