Waveshare IMX219-77IR 8MP 77 Degree FOV Infrared Camera, Applicable for Jetson Nano
Rs. 2,565.00
Shipping calculated at checkout.
In stock!
Couldn't load pickup availability
Description
Features

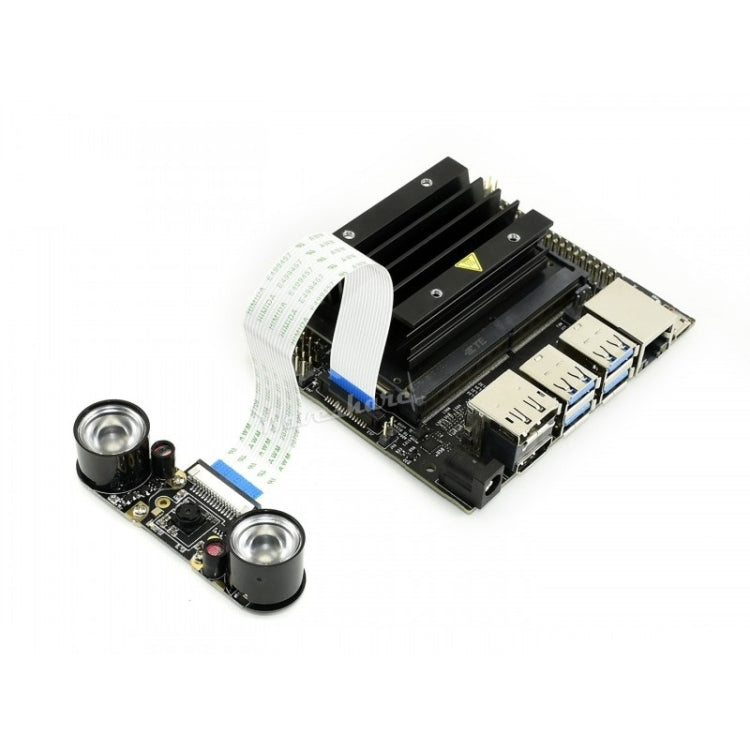

1. Supports NVIDIA Jetson Nano Developer Kit

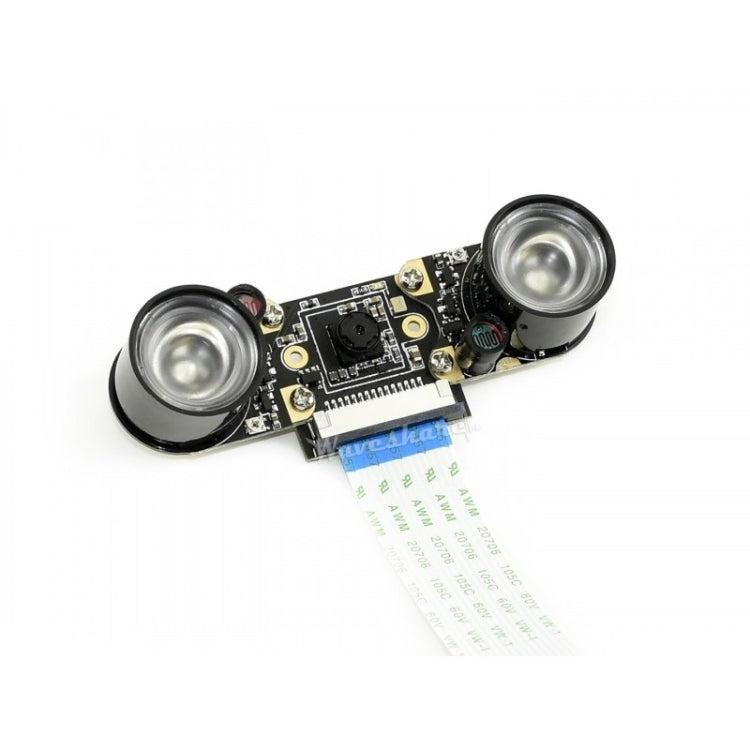

2. Supports night vision when works with infrared LEDs
3. 8 Megapixels
4. Sensor: IMX219
5. Resolution: 3280 × 2464
6. Lens specifications:
- CMOS size: 1/4inch
- Aperture (F): 2.0
- Focal Length: 2.96mm
- Angle of View (diagonal): 77 degree
- Distortion: <1%
- Lens dimensions: 6.5mm × 6.5mm
7. 4 screw holes
8. Used for attachment
9. Provides 3.3V power output
10. Supports connecting infrared LED and/or fill flash LED
11. Dimension: 25mm x 24mm
12. Weight: 31g
Packing List
1. IMX219-77IR Camera x1
2. Infrared LED Board (B) 2PCS x1
3. 15-pin FFC (opposite sides contact) x1
1. Supports NVIDIA Jetson Nano Developer Kit
2. Supports night vision when works with infrared LEDs
3. 8 Megapixels
4. Sensor: IMX219
5. Resolution: 3280 × 2464
6. Lens specifications:
- CMOS size: 1/4inch
- Aperture (F): 2.0
- Focal Length: 2.96mm
- Angle of View (diagonal): 77 degree
- Distortion: <1%
- Lens dimensions: 6.5mm × 6.5mm
7. 4 screw holes
8. Used for attachment
9. Provides 3.3V power output
10. Supports connecting infrared LED and/or fill flash LED
11. Dimension: 25mm x 24mm
12. Weight: 31g
Packing List
1. IMX219-77IR Camera x1
2. Infrared LED Board (B) 2PCS x1
3. 15-pin FFC (opposite sides contact) x1
