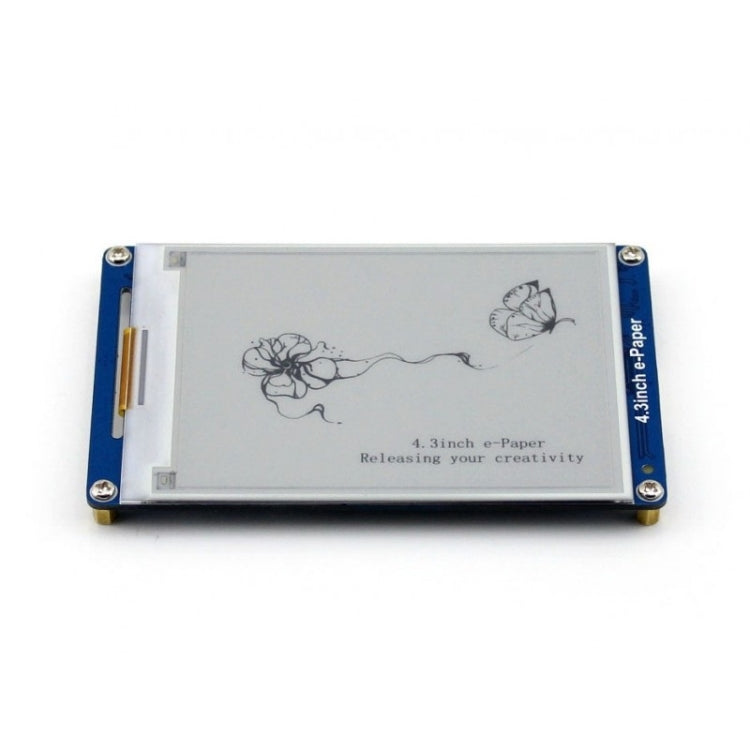

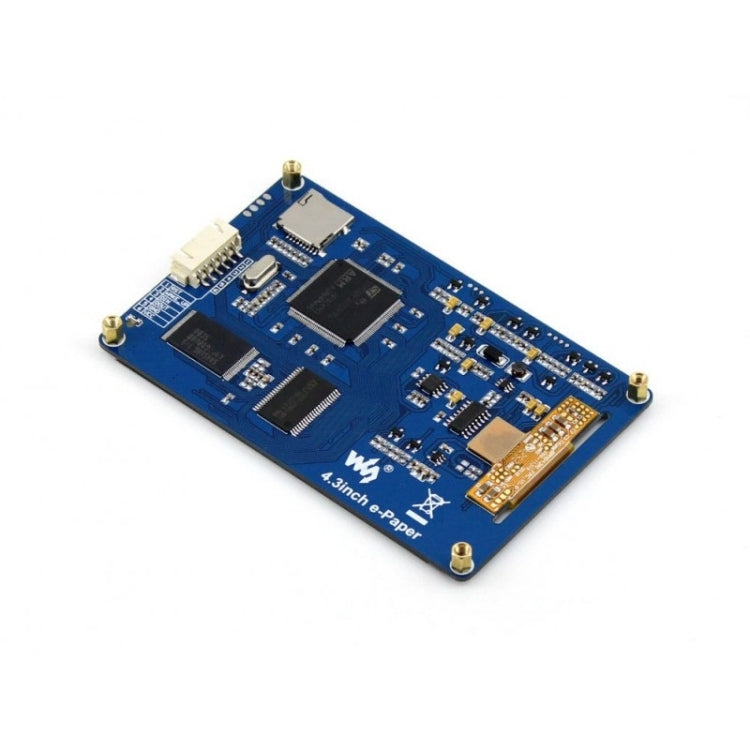

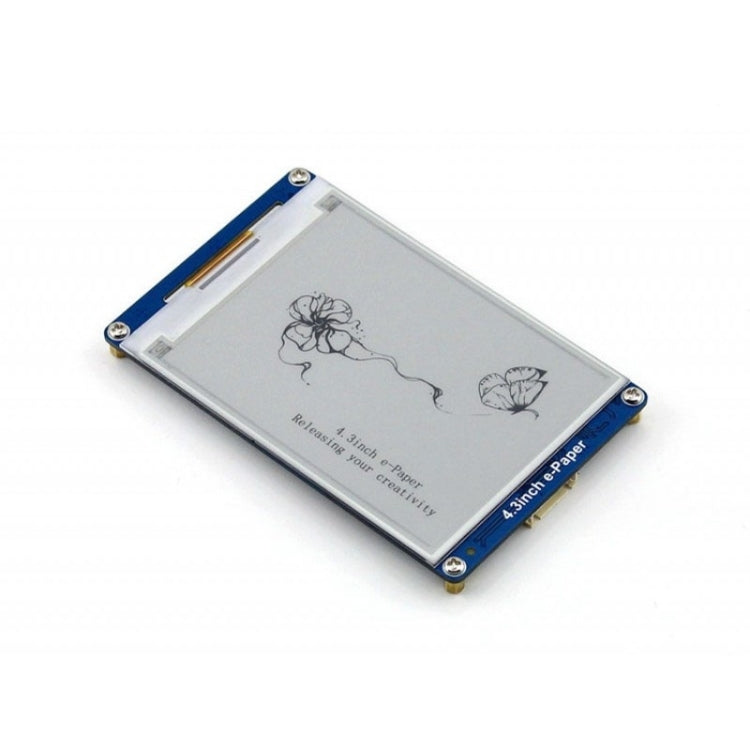

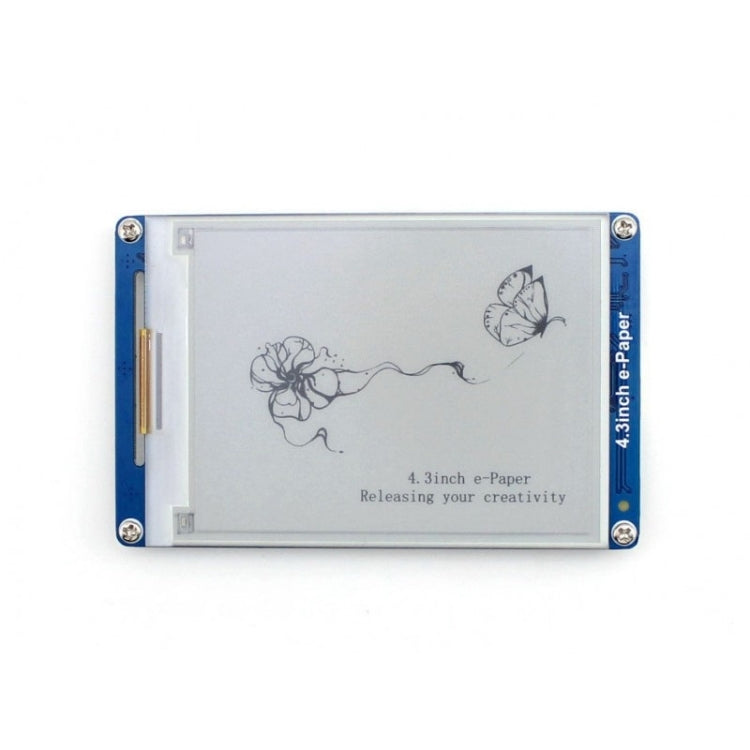

Waveshare 4.3 inch 800x600 Pixel Serial Interface Electronic Paper Display UART Module, 10628

Overview
1. This is a serial interface E-Ink display module, 4.3 inch, 800×600 resolution, with embedded font libraries, ultra low power consumption.
2. You do not have to know anything about the complex underlying details of e-Paper, nor the specific algorithms of displaying graphics, texts, and images. All it needs is the serial interface, and all it matters is your creativity.

Features
1. Easy to use, displays any contents via one serial interface, including geometric graphics, texts, and images
2. Embedded font libraries, supports 32, 48 and 64 dot matrix GBK Chinese fonts and English fonts
3. Built-in 128MB NandFlash, allows the font/image data to be stored in either an external TF card or the internal NandFlash
4. 4 grey level displaying, 800×600 resolution
5. Adjustable serial interface baud rate, 115200 by default when power up
6. Powered from 3.3V to 5V, compatible with logic level
7. Ultra low power consumption, sleeping current lower than 5mA
8. Comes with host computer software, control it directly on your computer

Applications
1. e book
2. Shopping mall POS
3. Price label
4. Industry instrument

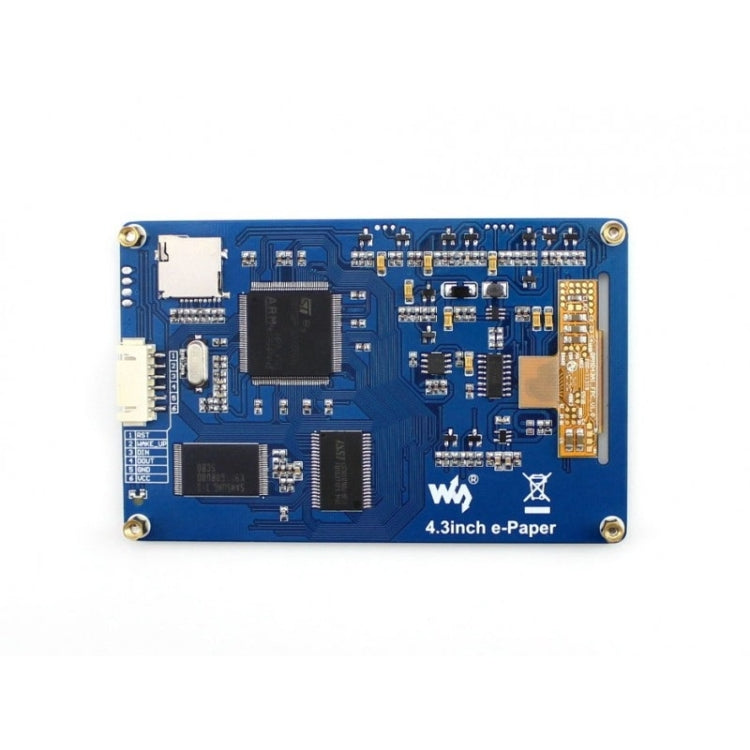

Pin Definitions
1. VCC: 3.3V~5.5V
2. GND: GND
3. DOU : Serial data out
4. DIN: Serial data in
5. WAKE_UP: External wake up
6. RST: External reset

Package Contents
1.4.3inch e-Paper UART Module x1
1. XH2.54 6-pin cable ×1
