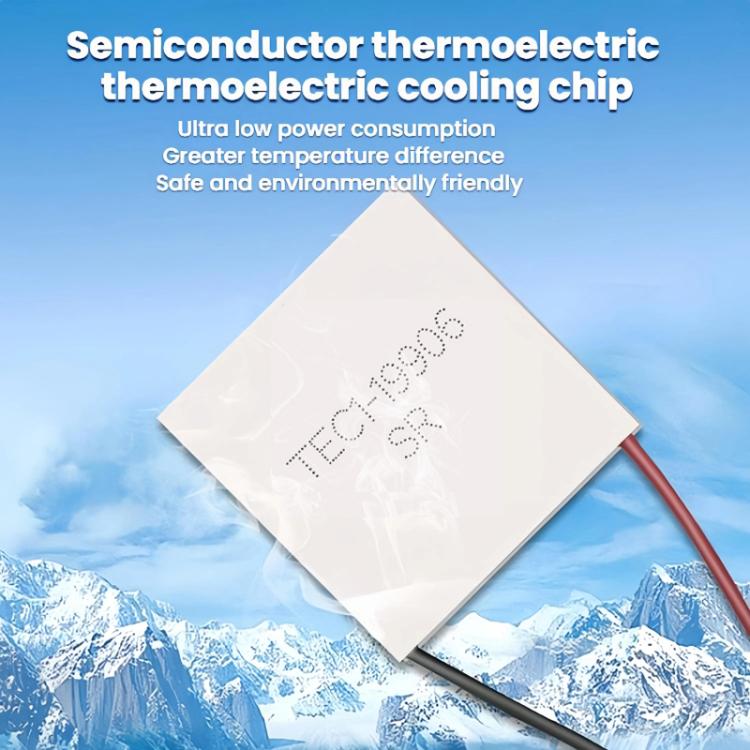

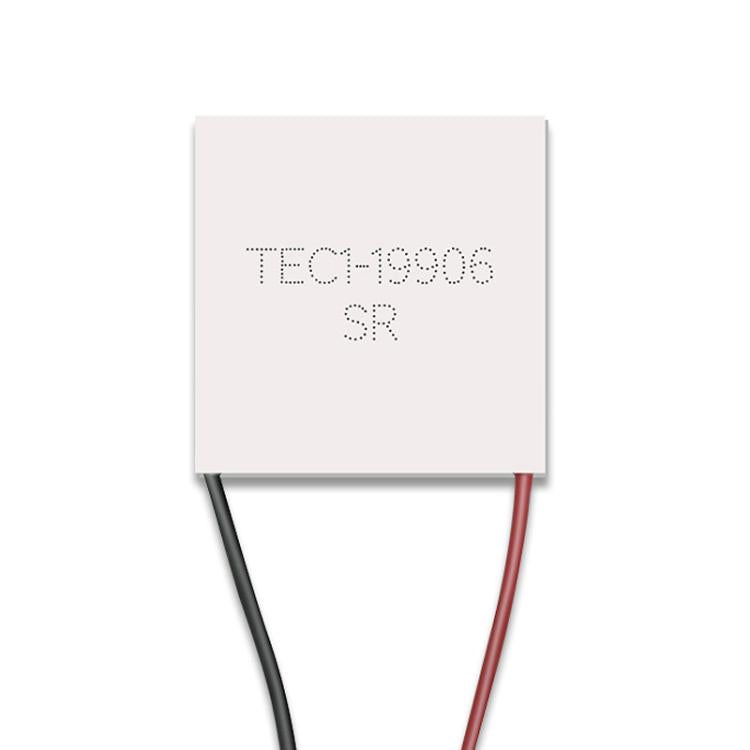

TEC1-19906 24V/6A High-power Semiconductor Refrigeration Plate, TEC1-19906

1. Chip model: TEC1-19906SR
2. Temperature difference: 65 degrees Celsius
3. Voltage: 6V (MAX)
4. Recommended voltage: 24V
5. Assembly pressure: 85N/cm2
6. Refrigeration capacity: 68W (MAX)
7. Current: 6A (MAX)
8. Working environment: Temperature range -55~83 degrees Celsius (excessive ambient temperature will directly affect the refrigeration efficiency)
9. Packaging process: 704 silicone rubber seal or epoxy resin seal
10. Storage conditions ambient temperature -10~40 degrees Celsius

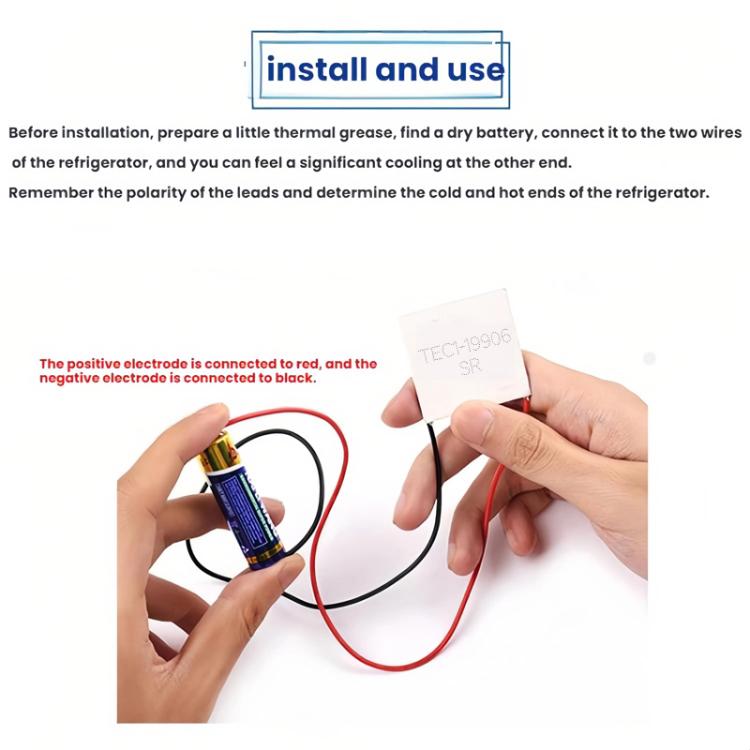

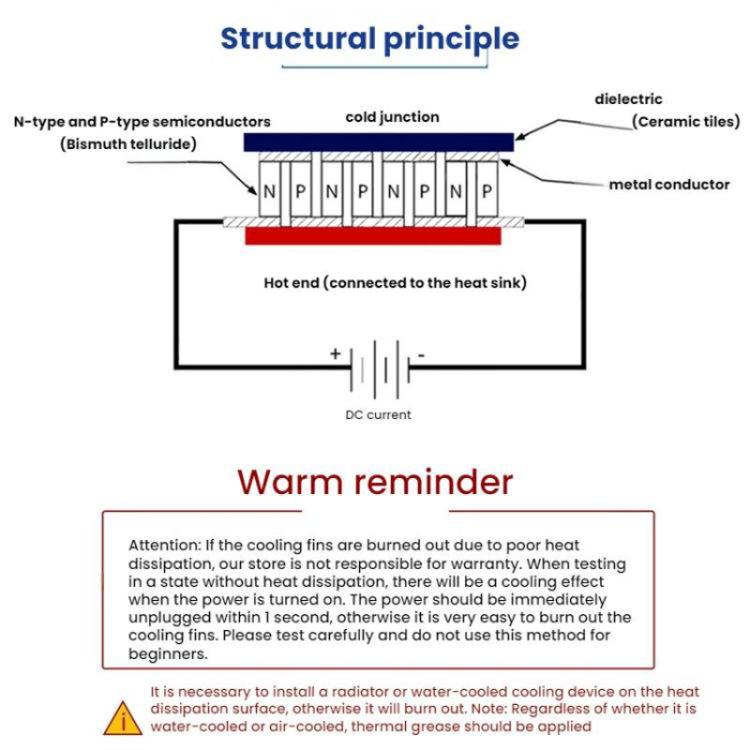

11. Device characteristics: red line positive electrode, black line negative electrode (literally the refrigeration surface, non-literally the heat dissipation surface)
12. When testing without heat dissipation, there will be a cooling effect. If the power is turned on, the power supply should be unplugged immediately within 1 second, otherwise the refrigeration plate will be easily burned.

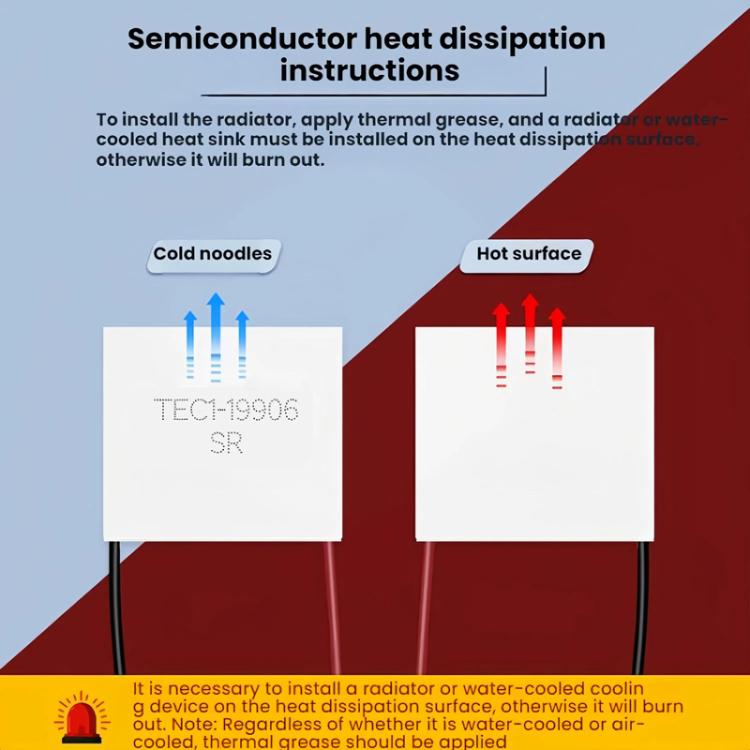

13. A radiator or water-cooled heat dissipation device must be installed on the heat dissipation surface, otherwise it will burn.
14. Note: No matter whether it is water-cooled or air-cooled, thermal silicone grease must be applied
15. Wire specification: lead length 200-300mm
16. Dimensions: 40x40x3.6mm
17. Weight: 24 grams
