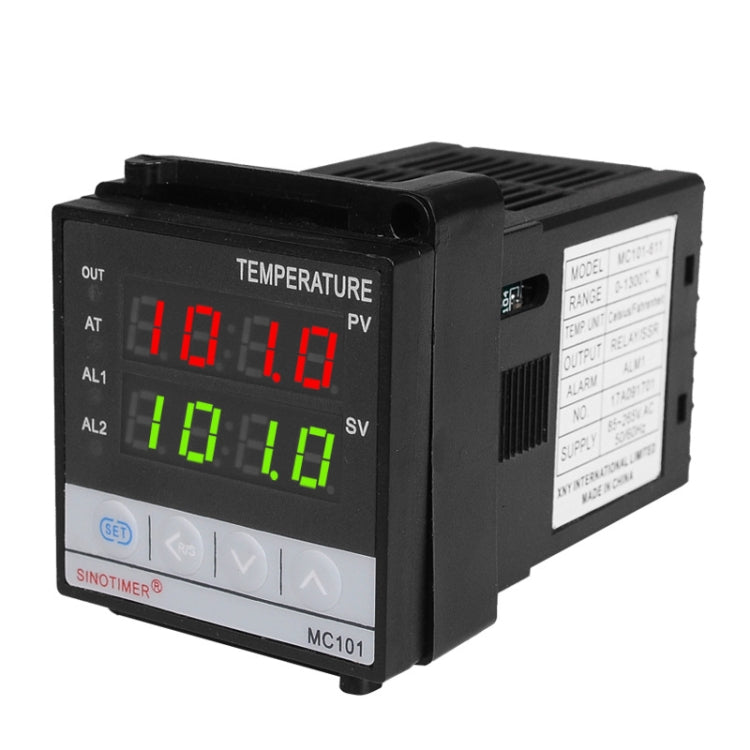

SINOTIMER MC101 Universal Input Short Case PID Intelligent Temperature Controller Meter Heating Cooling Relay SSR Solid State Output, MC101

Rs. 2,090.00

Shipping calculated at checkout.

In stock!
Option: MC101
Select The Options Above
Description

1. Measuring range: 0-1300 degrees Celsius
2. Measurement accuracy: 0.5%FS
3. Display mode: LED
4. Input: universal input, K/E/J/N/S/T/R/B/Pt100 and other signals, can be changed by yourself
5. Resolution: 0.1
6. Temperature display: degrees Fahrenheit / degrees Celsius
7. Power input: AC 85-265V 50/60Hz
8. Hole size: about 4.5 x 4.5cm
9. Overall Dimensions: about 4.8 x 4.8 x 8.5cm

Features:
1. Universal input, can change the input signal at will
2. Fahrenheit or Celsius temperature can be switched as required

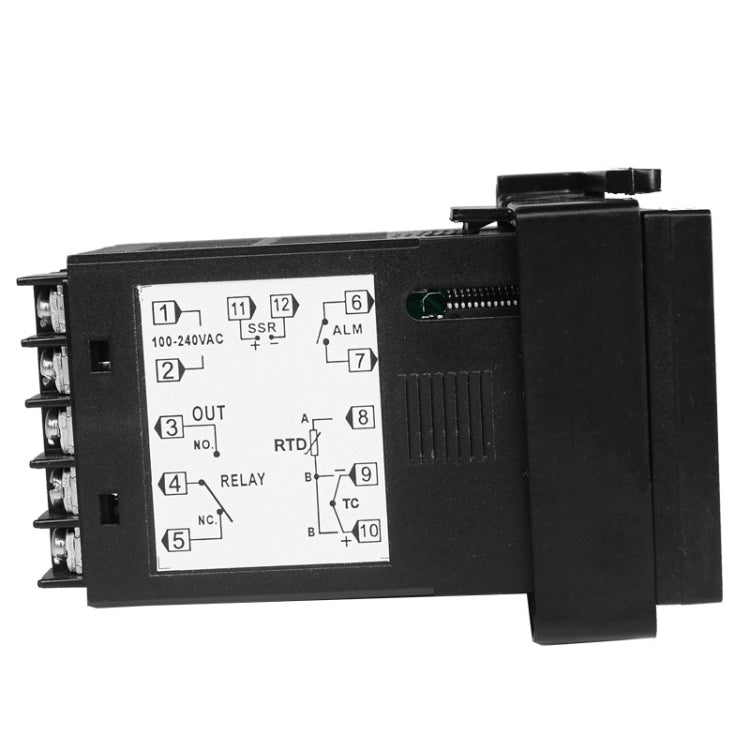

3. 1 set of control outputs (relay/SSR integrated), free to use relay outputs or SSR outputs
4. Thermometer signal input, with decimal point digital display
5. Using anti-interference chip, liquid crystal display, simple and clear


Specification:
Package Weight
One Package Weight 0.16kgs / 0.35lb
One Package Size 5cm * 6cm * 10cm / 1.97inch * 2.36inch * 3.94inch
Qty per Carton 160
Carton Weight 26.50kgs / 58.42lb
Carton Size 50cm * 37cm * 32cm / 19.69inch * 14.57inch * 12.6inch
Loading Container 20GP: 450 cartons * 160 pcs = 72000 pcs
40HQ: 1045 cartons * 160 pcs = 167200 pcs
