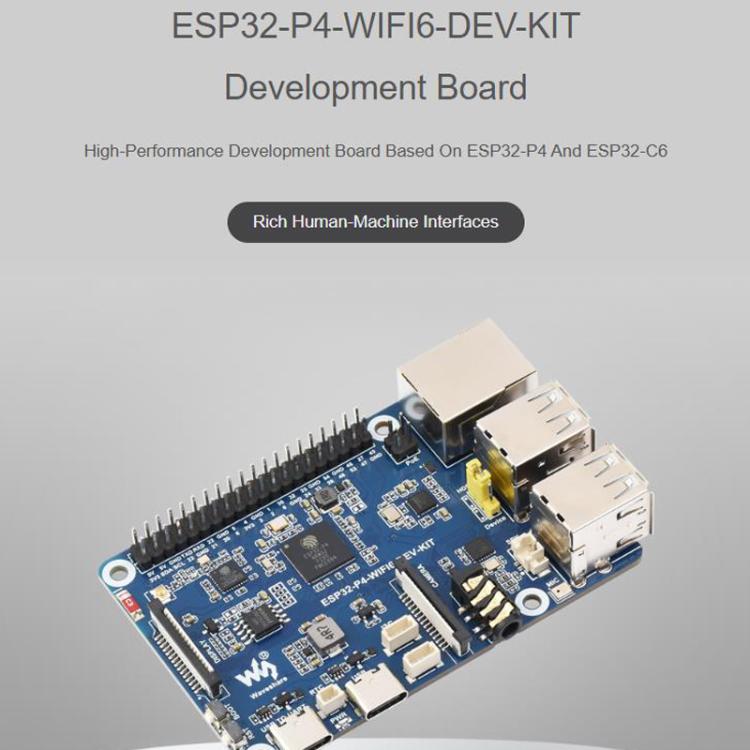

High-Performance Development Board Supports Wi-Fi 6 And Bluetooth 5 / BLE 5, WAVESHARE ESP32-P4-WIFI6-DEV-KIT, WAVESHARE ESP32-P4-WIFI6-DEV-KIT-A, WAVESHARE ESP32-P4-WIFI6-DEV-KIT-B, WAVESHARE ESP32-P4-WIFI6-DEV-KIT-C

1. High-performance MCU featuring RISC-V 32-bit dual-core and single-core processors
2. 128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP SRAM, 8KB TCM
3. Robust image and voice processing capabilities, with interfaces including JPEG codec, Pixel Processing Accelerator (PPA), Image Signal Processor (ISP), and H.264 video encoder
4. Chip-on-chip stacked 32MB PSRAM, module integrates 16MB NOR Flash
5. On-board peripheral interfaces include MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 SD card slot, microphone, speaker terminals, and RTC battery terminal
6. On-board 2 × 20 pin headers expose 28 additional programmable GPIO pins
7. Security Mechanisms: Secure boot, Flash encryption, hardware encryption accelerator, and hardware random number generator. Also supports hardware access protection for Access Permission Management (APM) and privilege separation
8. Onboard ESP32-C6 chip (ESP32-P4-WIFI6-DEV-KIT) extends 2.4GHz Wi-Fi 6 and Bluetooth 5 (LE) capabilities, communicating via SDIO protocol for stable connections and efficient data transfer

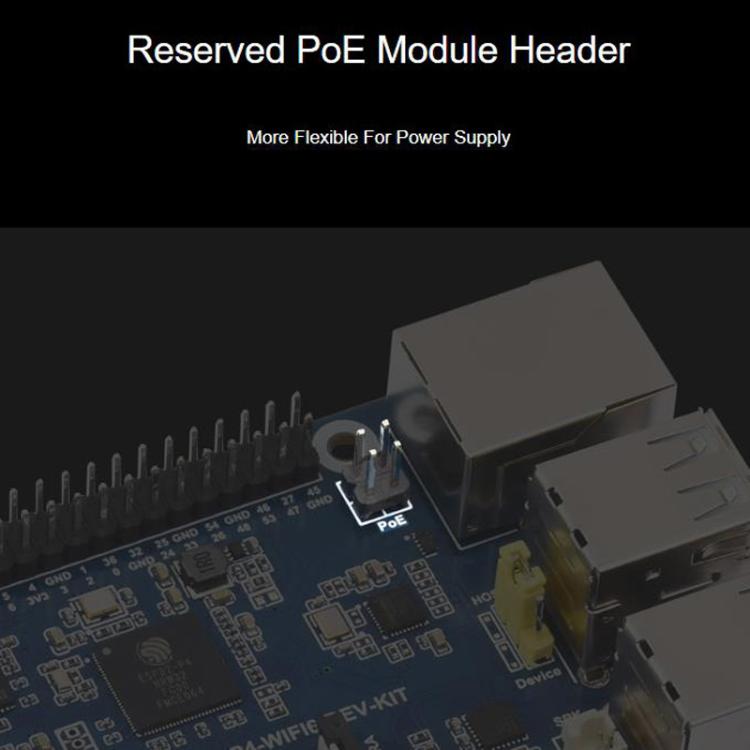

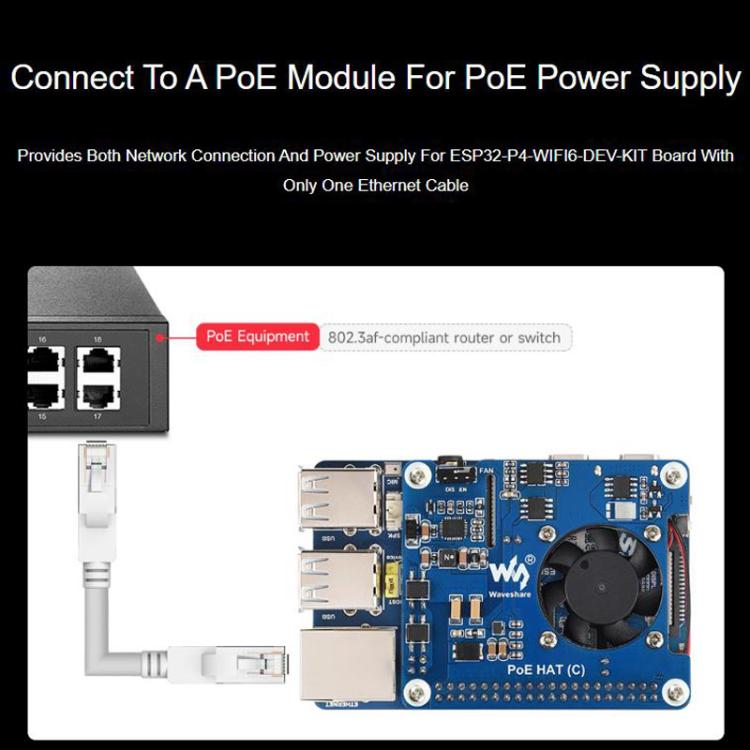

9. Reserved PoE module interface enables flexible power supply options for the development board

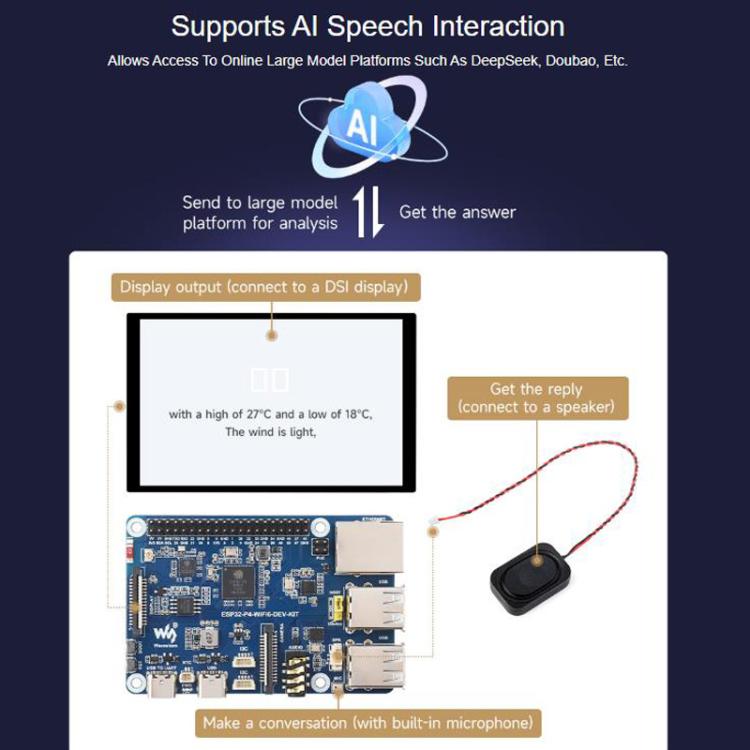

10. Supports mainstream AI platforms, enabling integration with online large-model platforms like Doubao and DeepSeek AI models

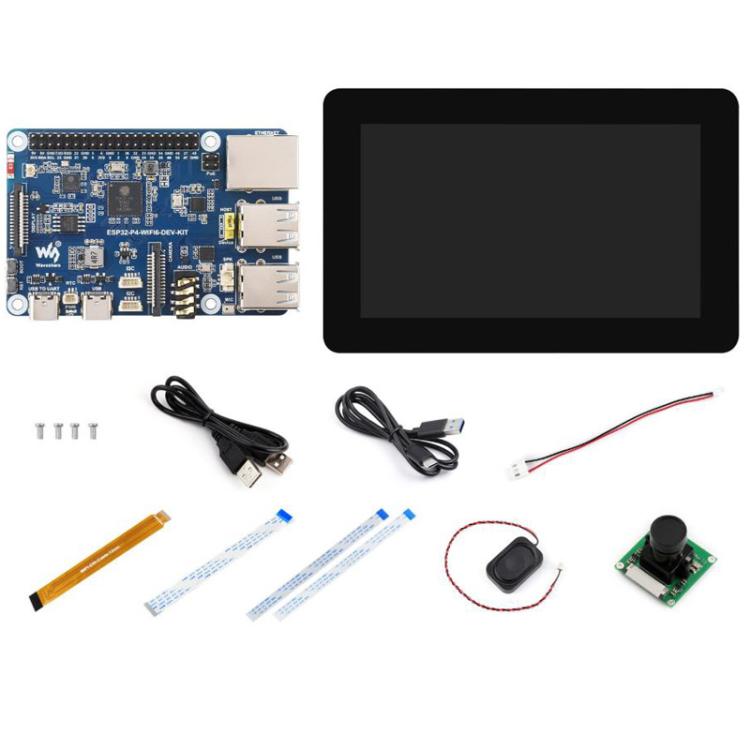

ESP32-P4-WIFI6-DEV-KIT-B package contents:
- ESP32-P4-WIFI6-DEV-KIT x 1

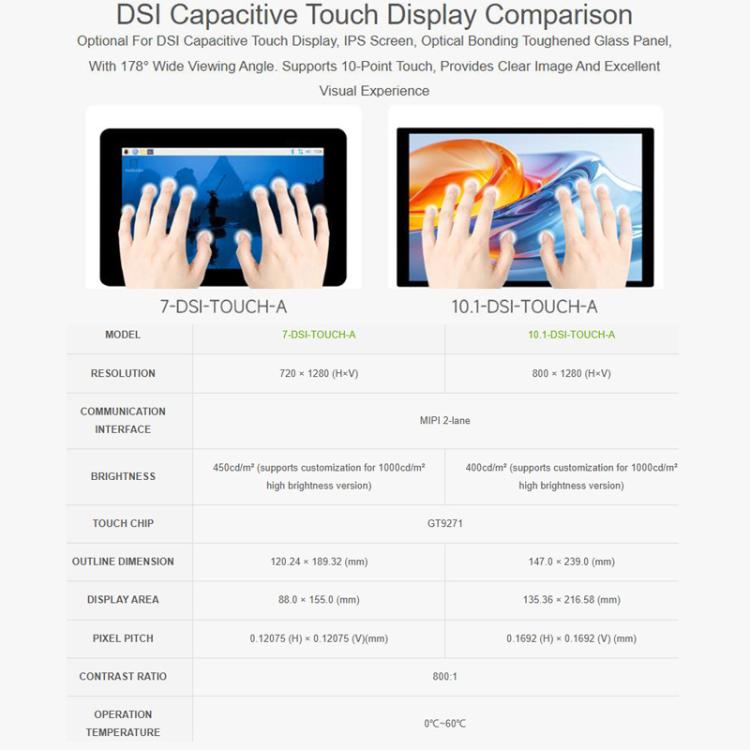

- 7-DSI-TOUCH-A touchscreen x 1

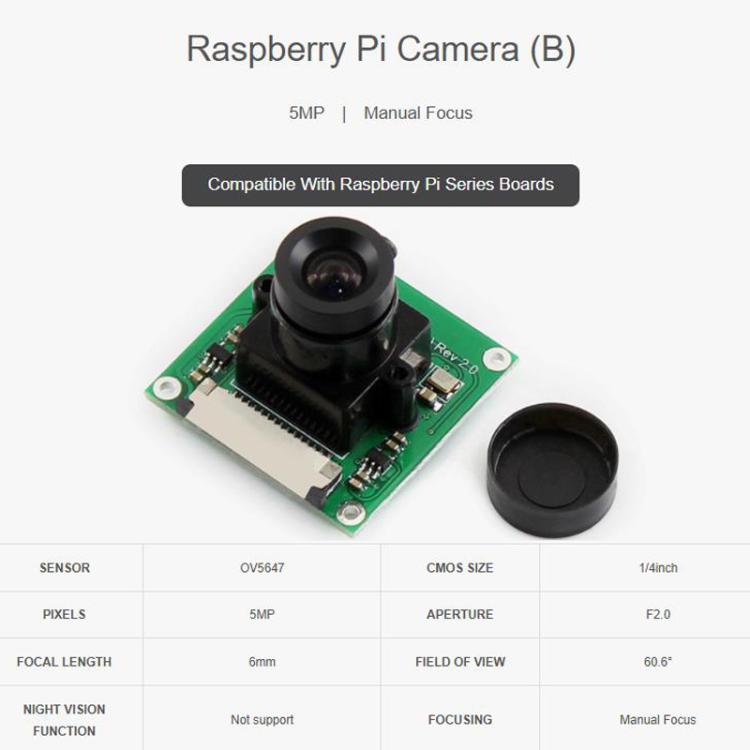

- RPi Camera (B) x 1
- 8 ohms 2W speaker x 1
- FFC 15-pin cable x 1
- MIPI-DSI cable (12cm) x 1
- FFC 22-pin cable x 2
- MX1.25 2-pin to SH1.0 2-pin cable (about 80mm) x 1
- MX1.25 2-pin to 2.54mm 3-pin cable (about 110mm) x 1
- MX1.25 2-pin to MX1.25 4-pin cable (about 150mm) x 1
- USB Type-A dual male cable x 1
- USB Type-A to Type-C cable (about 1m) x 1
- SH1.0 4-Pin connector cable (about 150mm) x 2
- Copper pillar pack x 1
- Screw pack x 1

ESP32-P4-WIFI6-DEV-KIT-C package contents:
- ESP32-P4-WIFI6-DEV-KIT x 1
- 10.1-DSI-TOUCH-A x 1
- RPi Camera (B) x 1
- 8 ohms 2W speaker x 1
- FFC 15-pin cable x 1
- MIPI-DSI-Cable-12cm x 1
- FFC 22PIN flex cable x 2
- MX1.25 2PIN to SH1.0 2PIN adapter cable (about 80mm) x 1
- MX1.25 2PIN to 2.54 3PIN adapter cable (about 110mm) x 1
- USB Type-A dual male cable x 1
- USB Type-A to Type-C cable (about 1m) x 1
- SH1.0 4-Pin cable (about 150mm) x 2
- Copper pillar pack x 1
- Screw pack x 1
