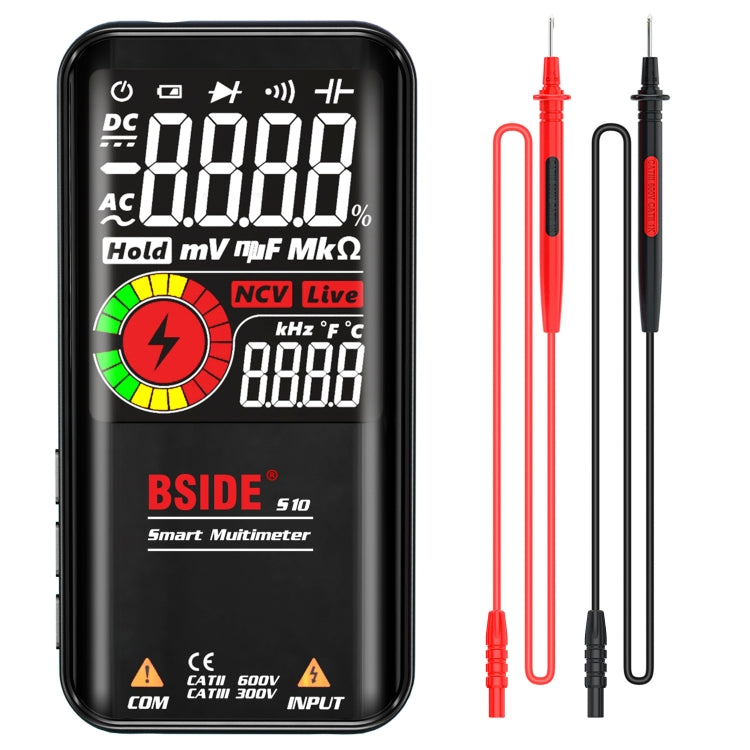

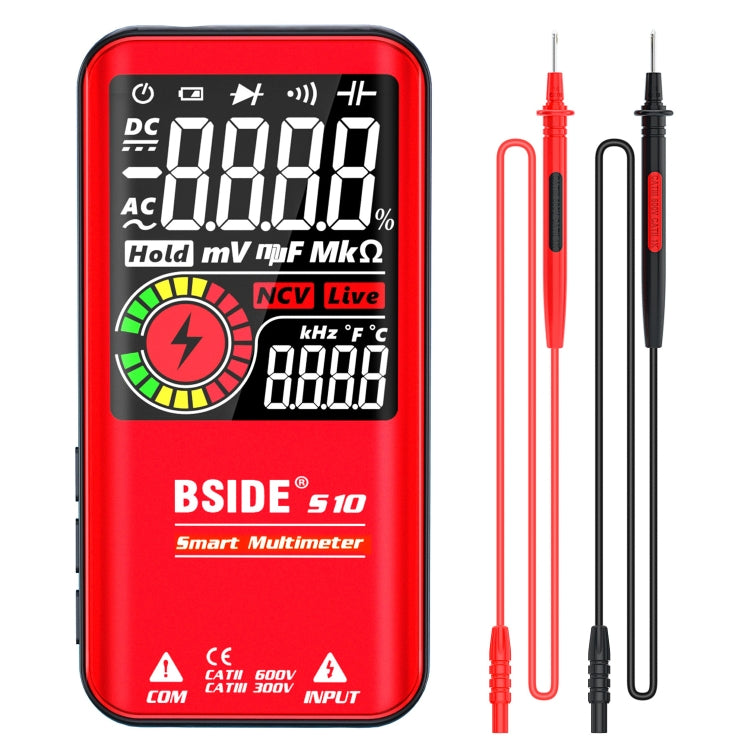

BSIDE Digital Multimeter 9999 Counts LCD Color Display DC AC

Features:
1. Large LCD, easy-to-read 3.5-inch high-definition display.
2. Durable protective shell can prevent impact, friction and collision.
3. Non-contact AC voltage detection, top sensor probe design, more securely identify AC voltage.
4. The high-resolution large screen can display 3 test results on the screen, including voltage, frequency, and analog bars.

parameter:
1. Dimensions: 143.4 x 70.9 x 15.7mm
2. Display: 9999 times
3. Screen: 3.5 inches
4. Resolution: 0.11ohms
5. S10 power supply: 1.5V (AAA) x 2 (not included)
6. S11 power supply: 800 mA lithium battery
7. Diode: automatically recognize the diode when it is lower than 3.0V
8. DC voltage: 0.8V-620V +/-(0.5%+3), resolution: 0.001V
9. AC voltage: 2.2V-620V +/-(0.5%+5), resolution: 0.001V
10. Resistance: 1Ω-999.9ohms +/-(2.0%+5), 1kohms-60Mohms +/-(1.0%+3)
11. V-Alert (non-contact voltage detection): buzzer alarm sound，on-site inspection: alarm buzzer, LCD screen display stripes
12. Continuity: If the resistance is less than 30ohms, the buzzer will sound
13. Frequency:
- 1Hz-1000Hz +/-(1.0%+5) (ACV:2V-10V); resolution: 0.001Hz
- 1KHz-60KHz +/-(1.0%+5) (ACV:10V-620V); resolution: 0.001Hz

Packing list:
S10:
S10 Multimeter x 1
Test cable x 1
Manual x1

S11:
S11 Multimeter x 1
Test cable x 1
Type-C charging cable x 1
EVA cloth bag x 1
Protective shell x 1
Manual x1

Note: The actual product is subject to the title model, the model machine of the picture is only for effect reference
