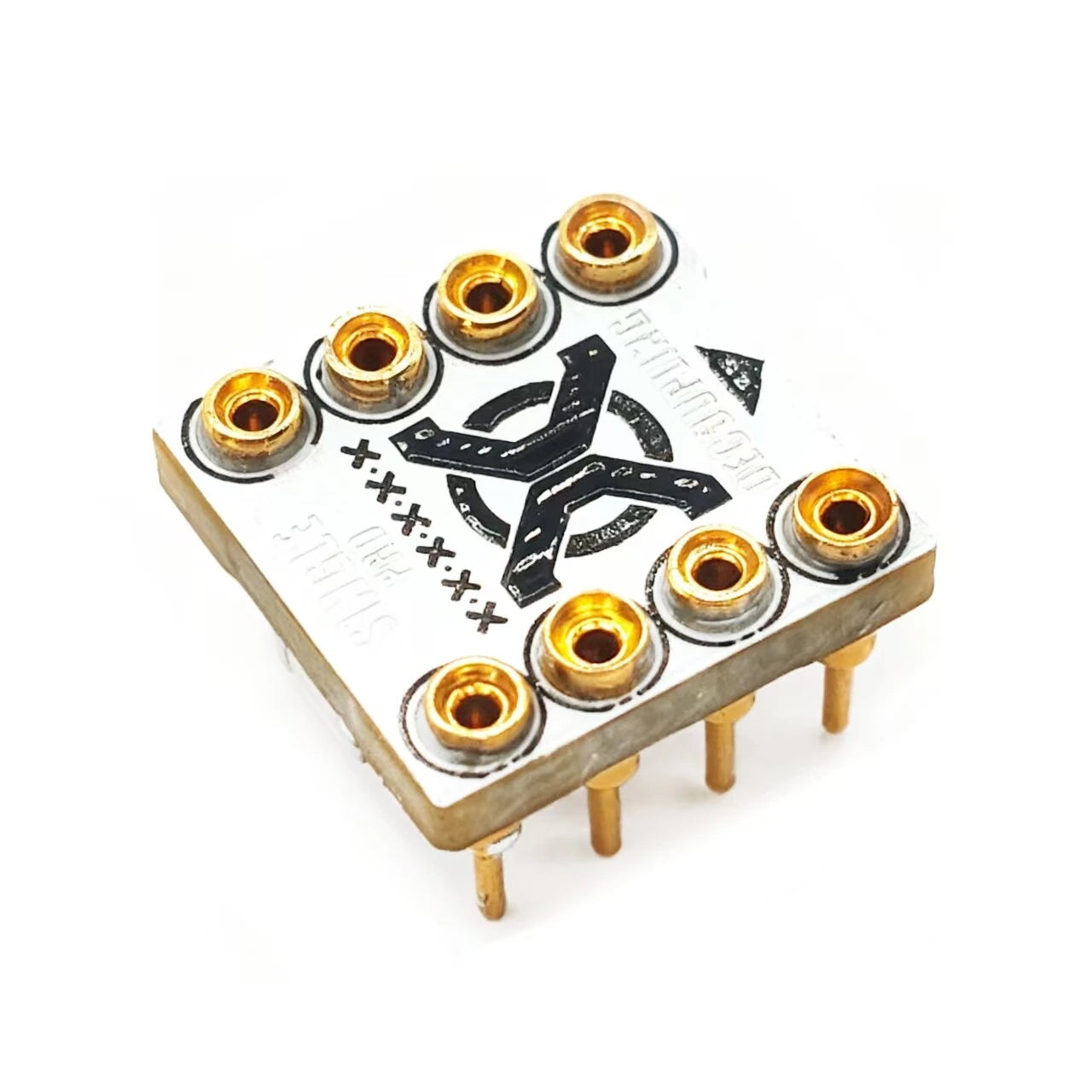

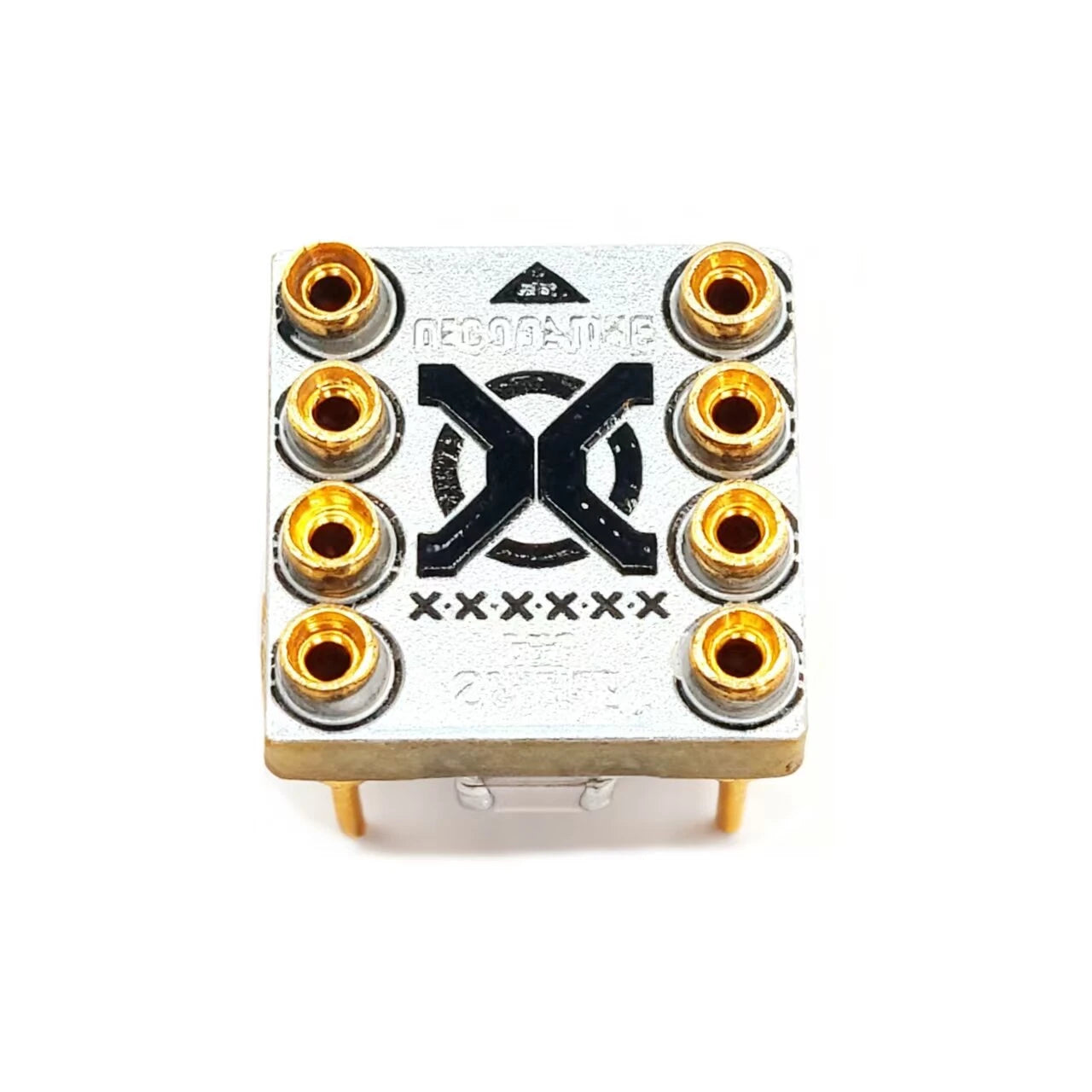

DIP8 Single Op Amp Upgrade Adapter Socket with Composite Capacitor Decoupling Low ESR Stackable Board for HIFI Audio DAC Preamp Headphone Amp Sound Quality Tuning Module Base

Pin Configuration: Standard DIP-8

Compatibility: Single-channel operational amplifiers only

Note: This adapter is not designed for the pinout of dual-channel op-amps.

Recommended Operating Voltage: ±15V

Maximum Operating Voltage: ±17V

Withstand Voltage: 35V

Surge Voltage Protection: 41V

1. This product is an upgrade adapter base for single-channel operational amplifiers (op-amps) in audio equipment. Its core function is to provide a socket with a decoupling circuit for standard DIP-8 single-channel op-amps, allowing users to stack and swap different op-amp models for sound quality adjustment.

2. Designed for Single Op-Amps: Manufactured according to the pinout of single-channel op-amps and is not compatible with dual-channel versions.

3. Composite Capacitor Decoupling Design: Utilizes a combination of Rubycon capacitors and polymer tantalum capacitors for mid-frequency decoupling. The polymer tantalum capacitors are designed to achieve low Equivalent Series Resistance (ESR) and maintain relatively stable ESR performance across a wide frequency range.

4. High-Frequency Decoupling Support: Uses NPO MLCCs (multilayer ceramic capacitors) placed closer to the pins to maintain decoupling capability in the high-frequency range.

1 x Single Op-Amp Upgrade Adapter
