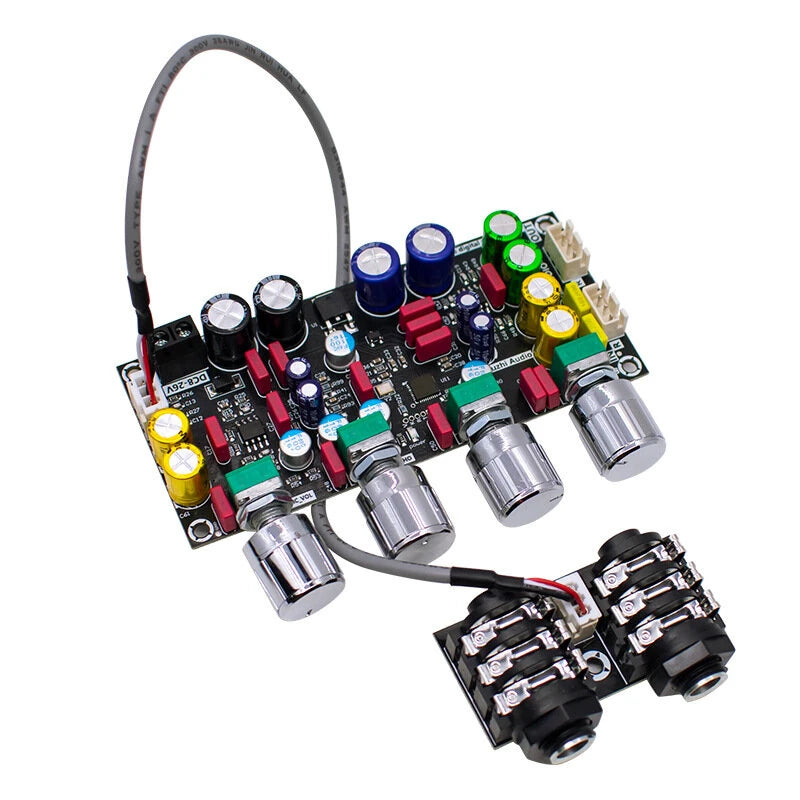

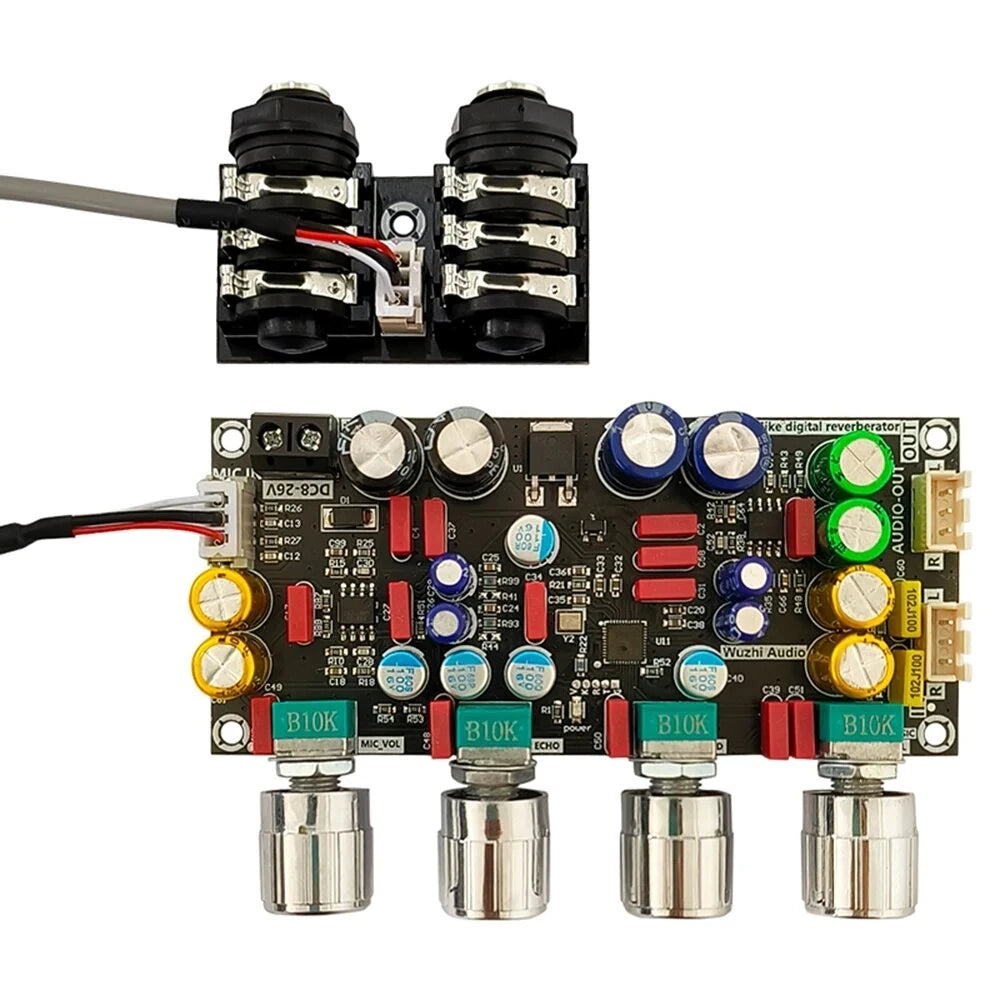

WUZHI ZK-AMP 2G DSP Mixing Board Front Stage Amplifier Module 8-26V Intelligent Frequency Echo Reverb Anti Whistling

Specification:
Input Voltage: 8-26VDC (DC power input only)
Mic Interface: Dual 6.35mm microphone connectors
Background Music Input: XH2.54-3P connectors
Reverberation Output Interface: XH2.54-3P connectors
Potentiometer Parameters: 10K single potentiometer, 6mm quincunx design, spacing 23.34mm

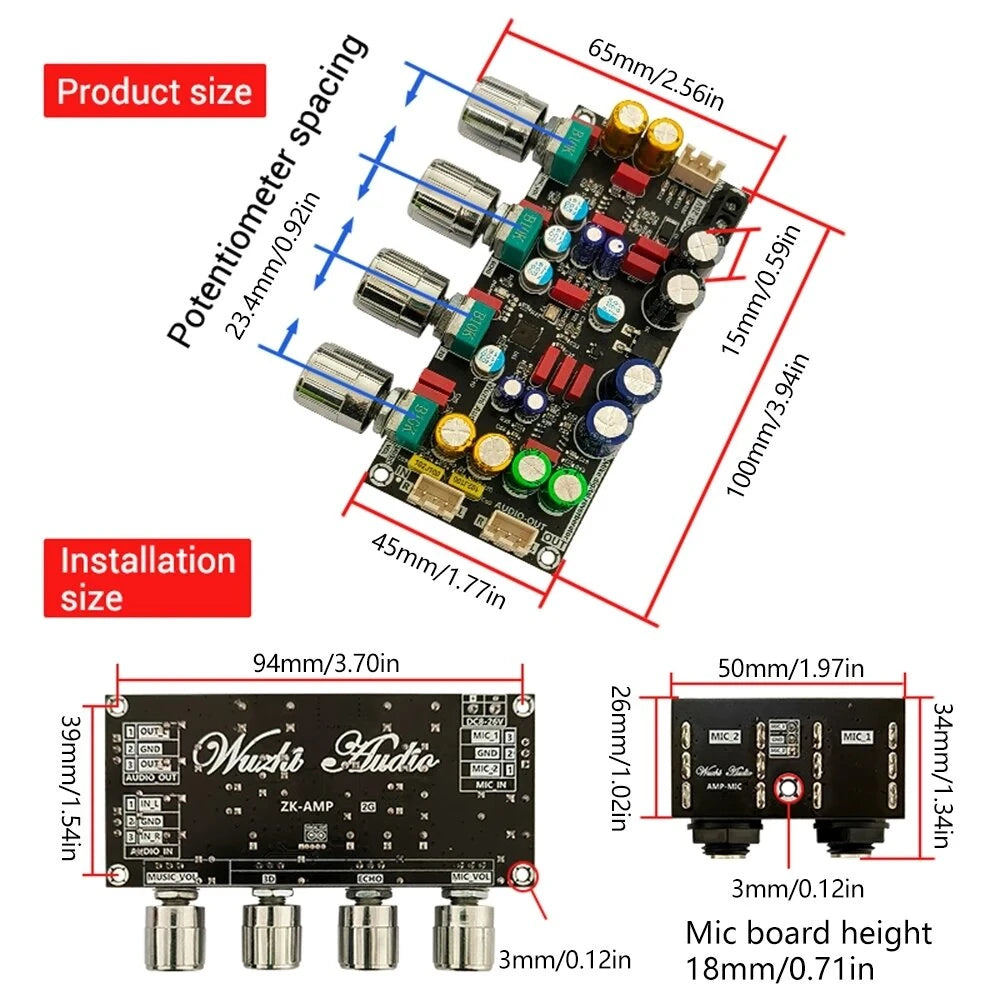

Dimensions: Front Plate (100mm x 65mm x 15mm), Mic Socket Board (50mm x 34mm x 18mm)

Features:
1. Equipped with imported components such as ELNA blue robe energy storage capacitors and KingBox solid state modules for enhanced sound precision.
2. Professional DSP chip provides mixing functionalities for high-quality audio processing.
3. Compatible with multiple input sources such as mobile phones, televisions, decoding boards, wired and wireless microphones.
4. Adjustable knobs for mic volume, mic echo, mic 3D effects, and music volume customization.
5. Includes advanced front and rear amplification circuits for an optimized audio experience.
6. Simple connectivity with XH2.54-3P shielded cables, suitable for various audio setups.

Package Includes:
1x DSP Audio Pre-Amplifier Board
1x Mic Socket Board

3x XH2.54-3P Shielded Cables (30cm each)
