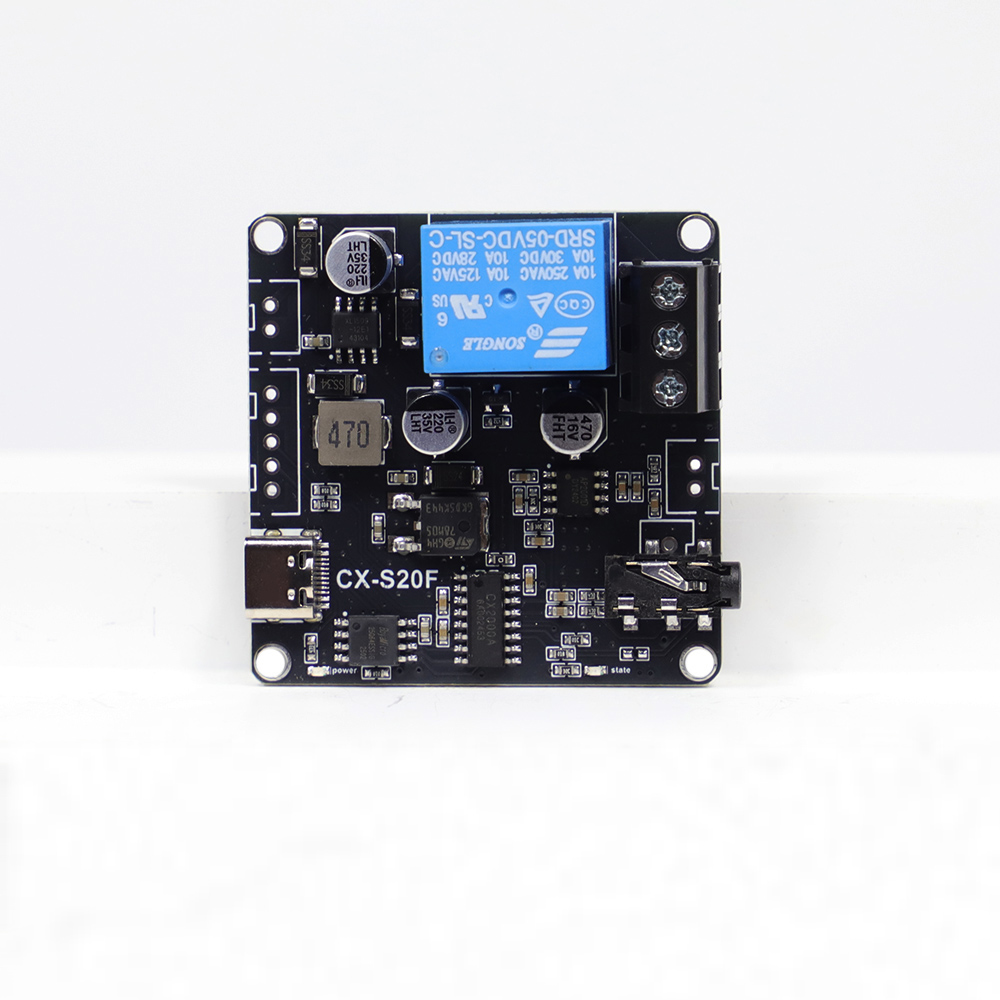

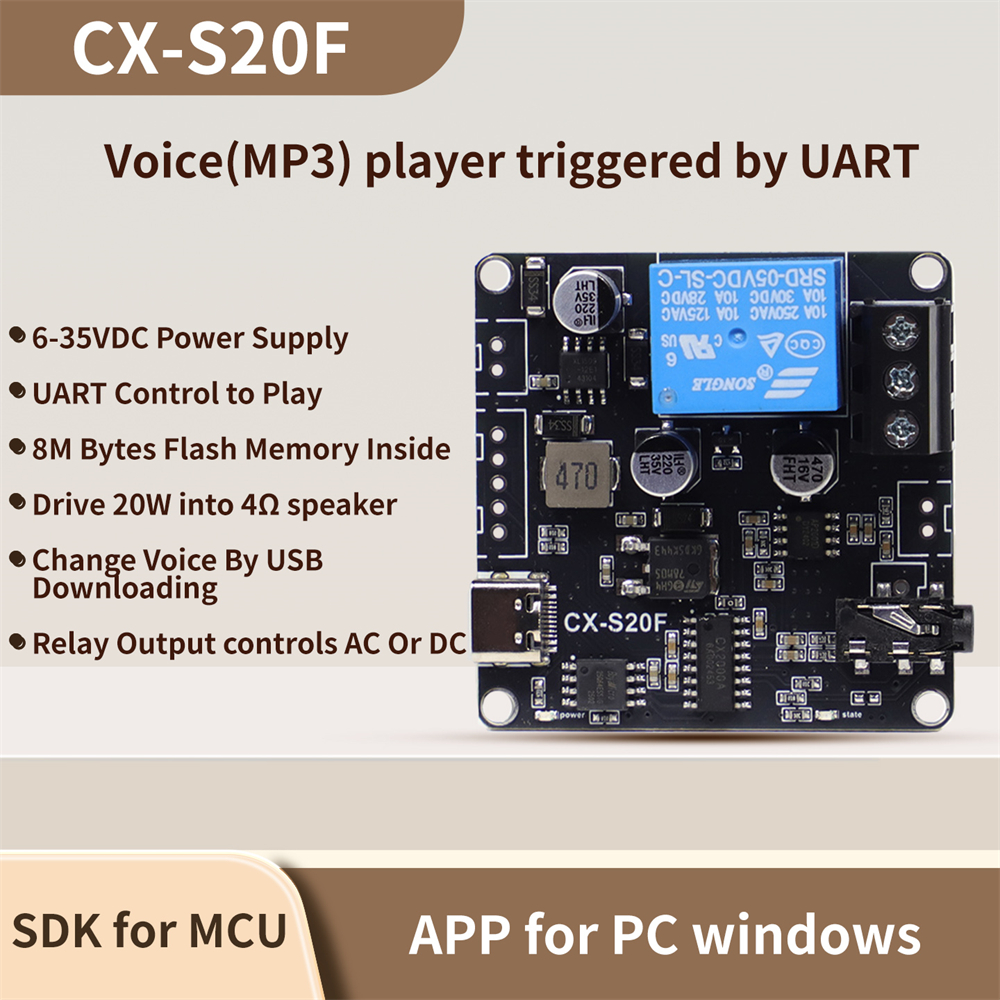

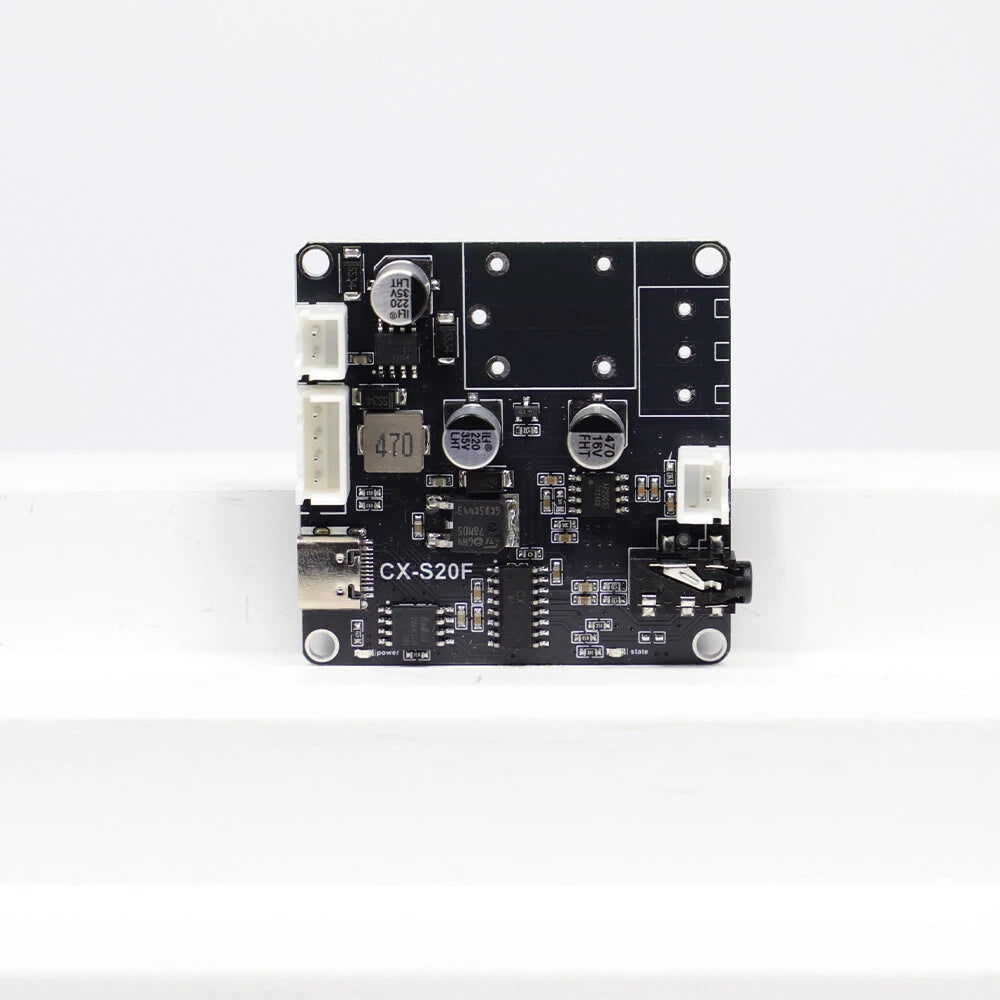

Sinilink CX-S20F MP3 Audio Playback Module 20W Output Supports MP3 WAV UART Control USB File Update 6-35V DC

Power Supply: 6-35V DC (Suggested: ≥12V DC)

Audio Decoding: Supports MP3 and WAV formats, up to 48KHz sampling rate

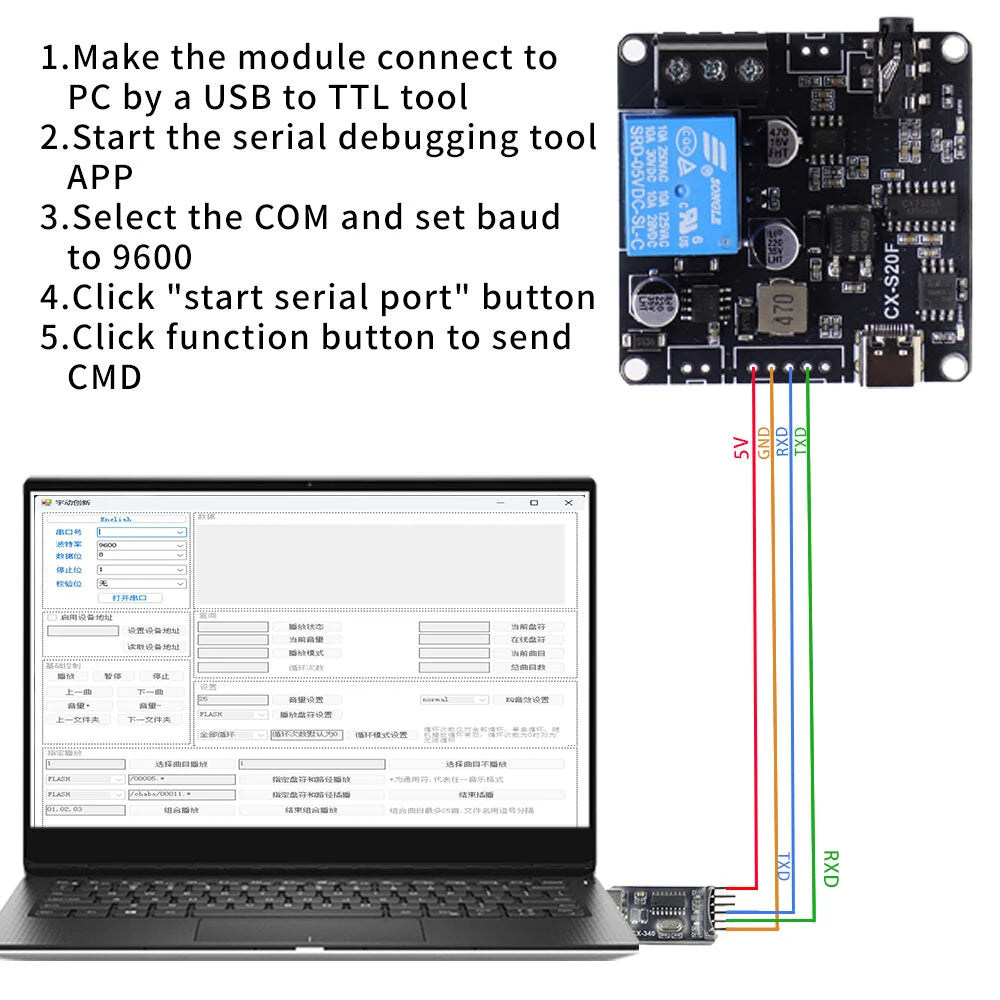

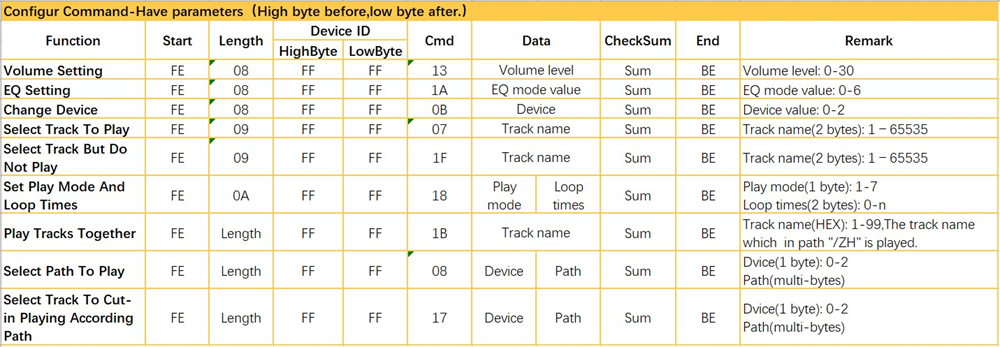

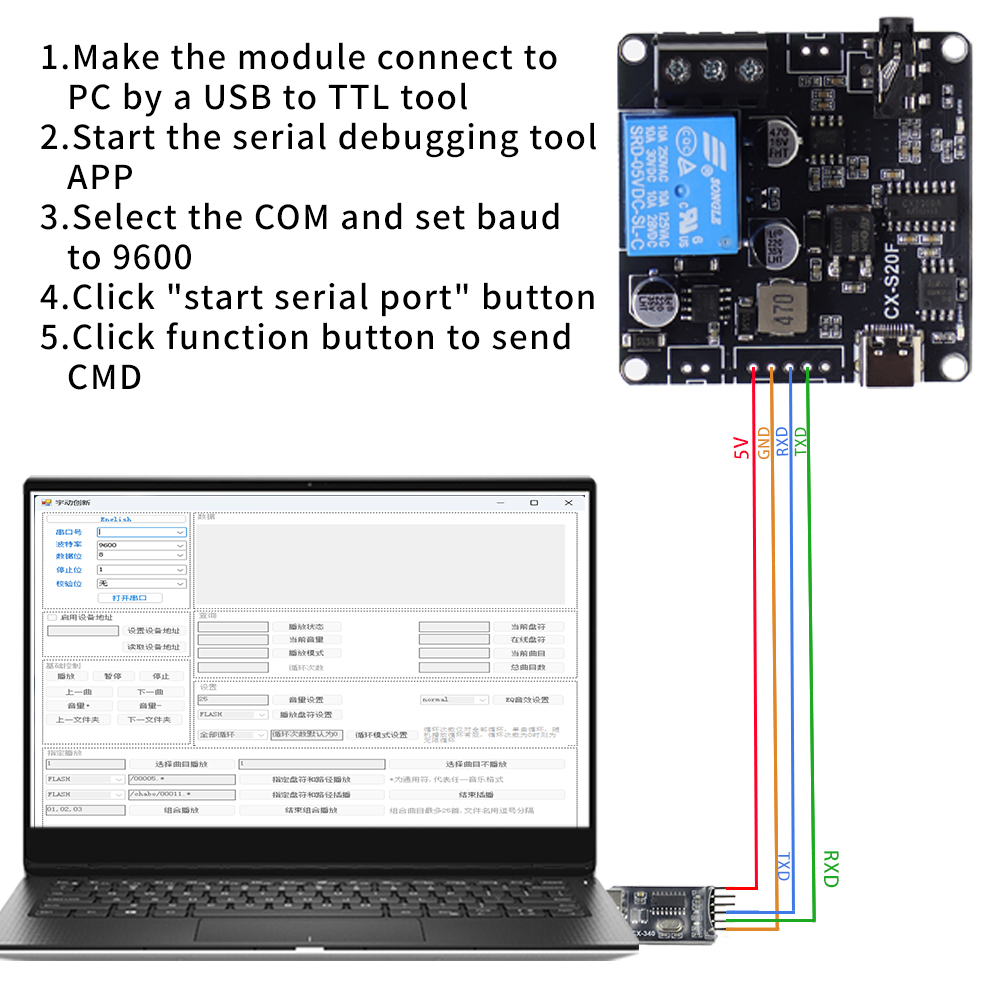

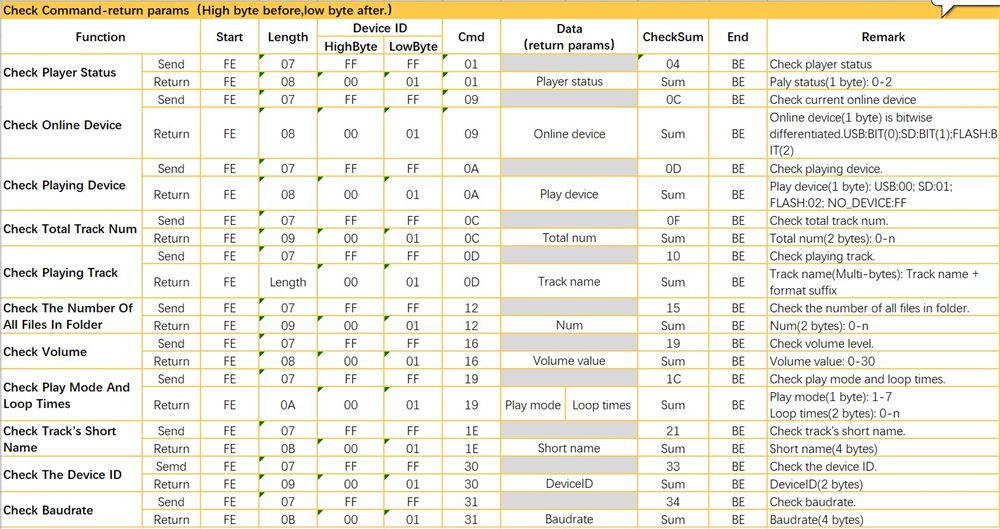

Control Interface: UART for play, pauses, track selection, volume control, EQ mode switching, and playlist selection

Built-in Amplifier: 20W Class D amplifier, capable of driving 4Ω 20W or 8Ω 10W speakers

Memory Capacity: 64Mbits (8MBytes) of built-in storage

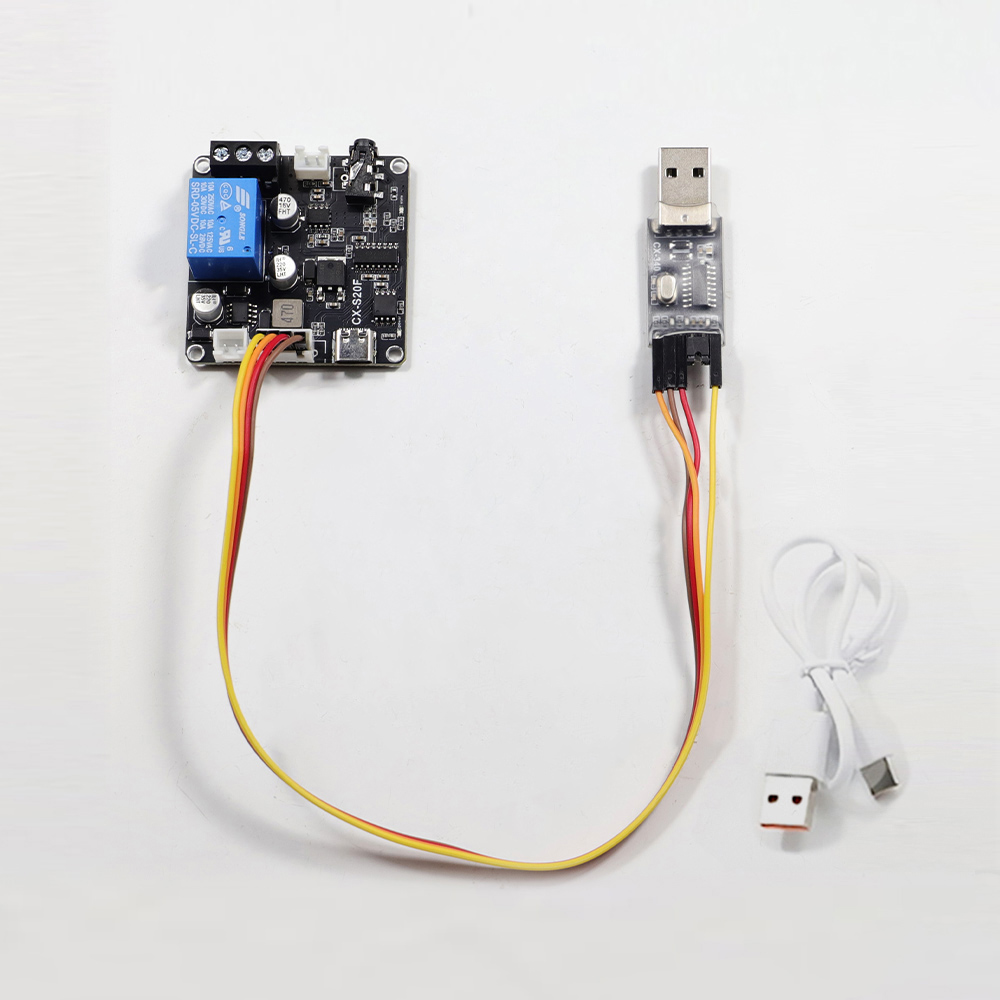

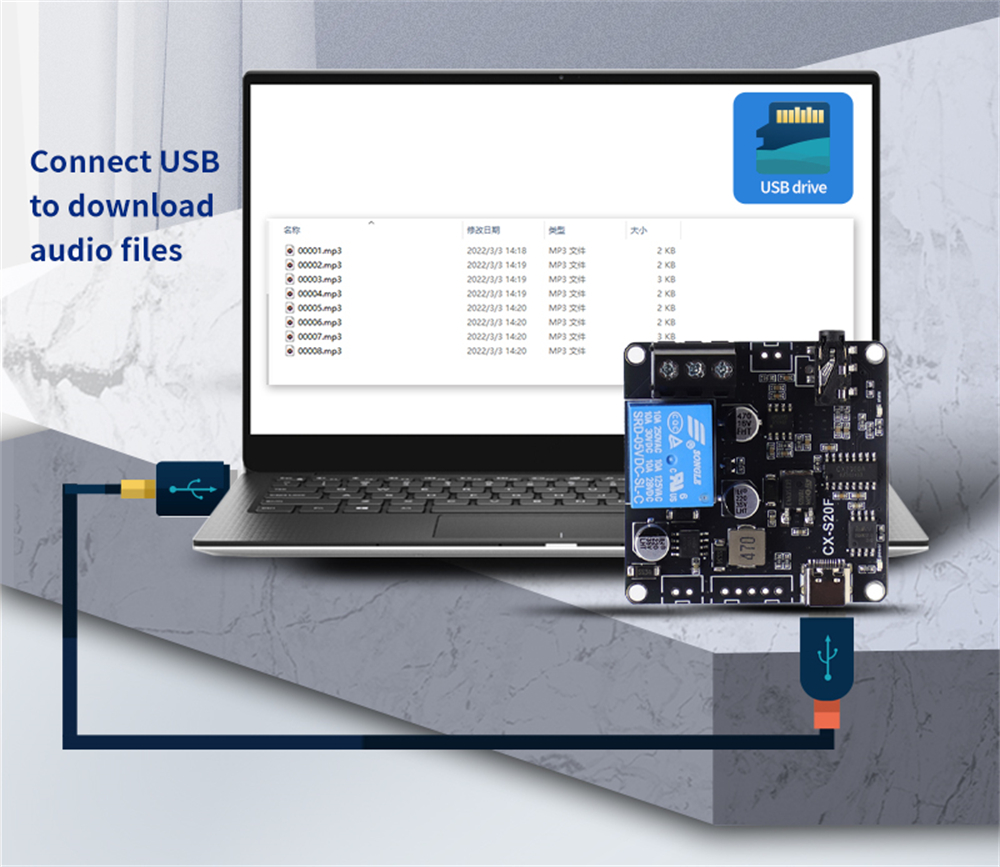

USB Connection: Supports file updates via USB data cable

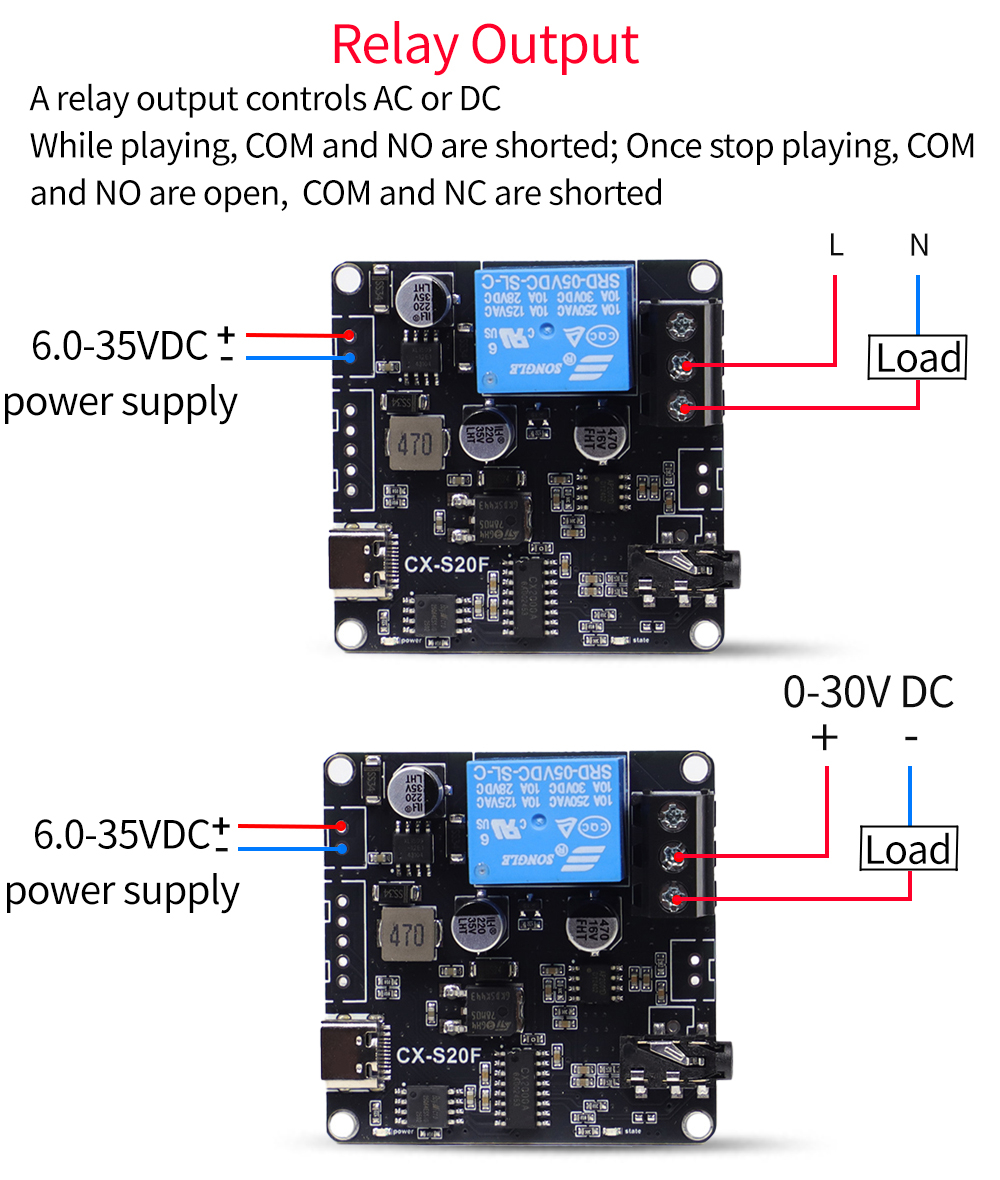

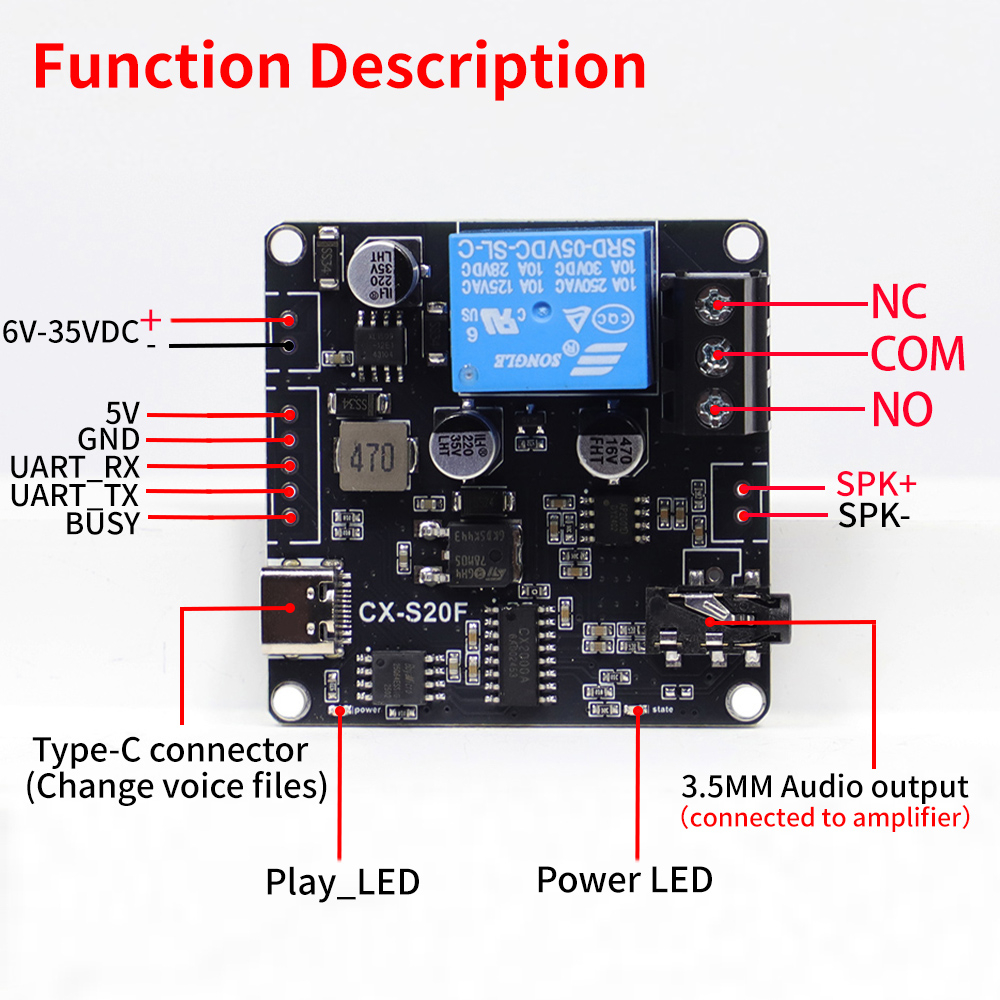

Relay Output Control: Enables connection with alarm or other control devices

1. Broad Power Compatibility: Operable within a wide voltage range of 6-35V DC, ensuring stable performance across various applications and power environments.

2. High Audio Quality: Supports MP3/WAV formats with up to 48KHz sampling rate, delivering rich and crisp audio output for enhanced user experience.

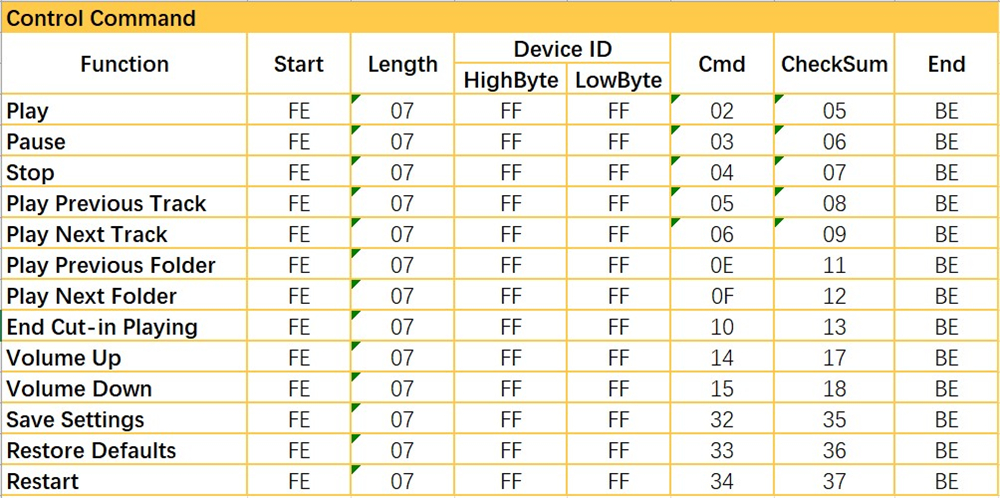

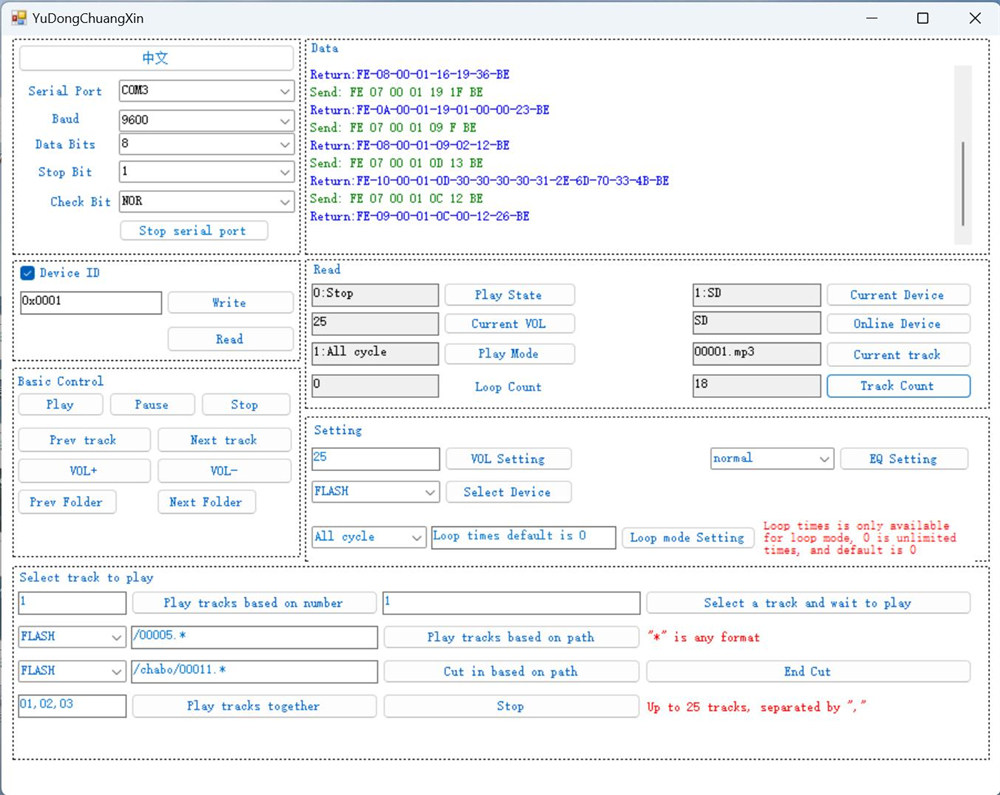

3. Advanced Control Options: Offers UART interface for precise commands such as play, pauses, track skipping, volume adjustment, and EQ mode switching.

4. Integrated Amplifier: Includes 20W Class D amplifier, providing high-efficiency audio output and compatibility with most 4Ω and 8Ω speakers.

5. Convenient File Updates: Seamlessly update audio content via USB connectivity, catering to evolving playback requirements with ease.

1 x CX-S20F MP3 Module
