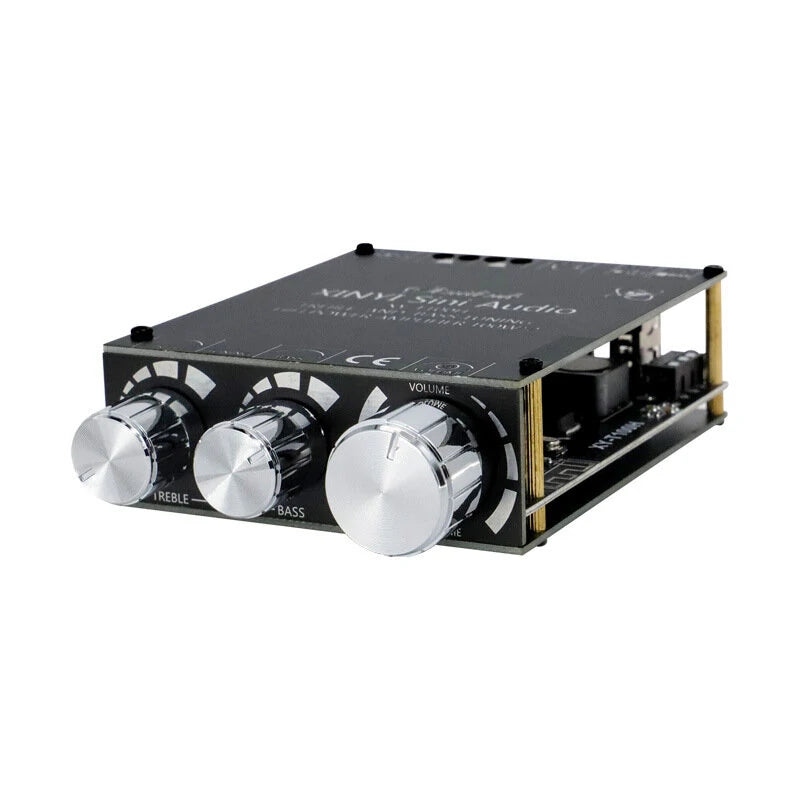

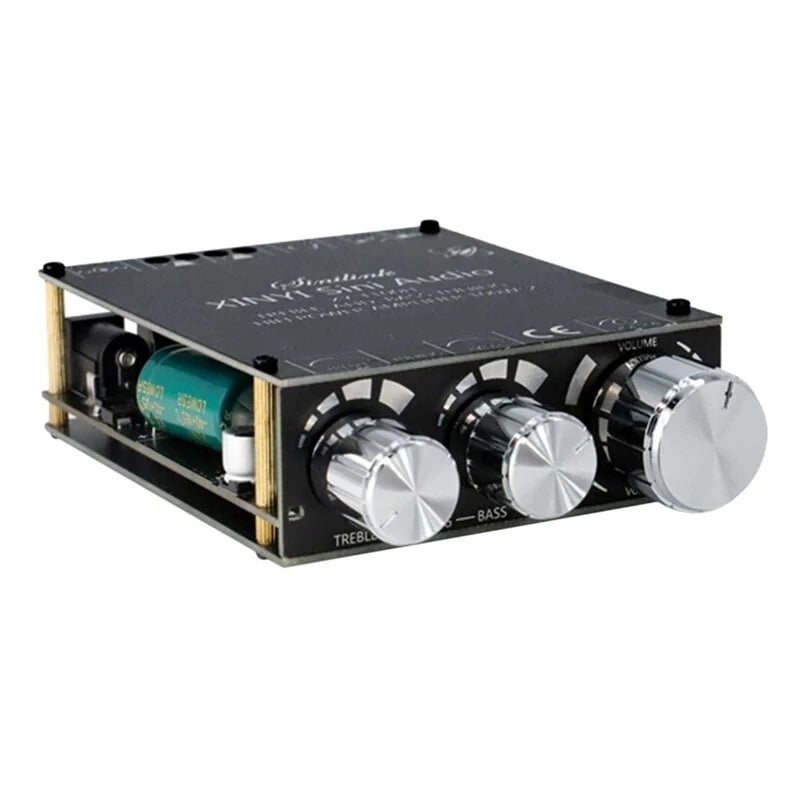

XY-T100H 100W*2 TPA3116D2 bluetooth 5.0 Power Audio Amplifier Board Home Theater Amplifiers Stereo Treble and Bass Adjustment
Rs. 2,090.00
Shipping calculated at checkout.
In stock!
Couldn't load pickup availability
Description
Specification:
Color: Black
Material: Plastic
Size: 98 x 70 x 25mm
| Model | XY-T100L | XY-T100H (This item) |
| Chip | Class-D amplifier chip made in China | class-D (TPA3116D2) |
| Sinilink Link APP | Support | Support |
| Applicable power supply | DC5-24V/5A or above | DC5-24V/5A or above |
| Bluetooth version | 5 | 5 |
| Audio input | Bluetooth+AUX+U disk+USB sound card | Bluetooth+AUX+U disk+USB sound card |
| Volume adjustment | Encoder 360-degree stepless tuning | Encoder 360-degree stepless tuning |
| Audio output | Passive speaker+3.5 mm audio interface | Passive speaker+3.5mm audio interface |
| Output power | 100W*2 | 100W*2 |
| Output filter | Filter-free | Audio-specific LC filter |
| Protection mechanism | Static electricity, overcurrent, short circuit, overheating and other protections | Static electricity, overheating, overvoltage, undervoltage, DC detection and short circuit protection |
| Heat dissipation method | Heat sink+housing | Heat sink+housing |
| Applicable speakers | 4-8Ω, 20-200W | 2-8Ω, 20-200W |
| Dimensions (with case) | 93 mm*65mm*25mm | 98mm*70mm*25mm |
| Weight (including packaging) | 107g | 145g |
Package included:
1 x bluetooth 5.0 Audio power amplifier board
